JUKI SR-9950HB-13090ZKZ Industrial Computer-Controlled Head-Rotating Pattern Sewing System for Heavy Materials with 1,300×900 mm Sewing Area

JUKI SR-9950HB-13090ZKZ Industrial Computer-Controlled Head-Rotating Pattern Sewing System for Heavy Materials with 1,300×900 mm Sewing Area & RFID Template Recognition

The JUKI SR-9950HB-13090ZKZ brings digital precision to large-format pattern sewing with a 1,300×900 mm field and 360° rotating head for clean seams in every direction. At up to 3,000 stitches/minute — and supported by a programmable intermediate presser and a double-capacity hook — it delivers stable performance on layered or rigid materials. RFID template loading streamline changeovers and raise every cycle to a premium, repeatable finish.

What Sets Juki SR-9950HB-13090ZKZ Apart

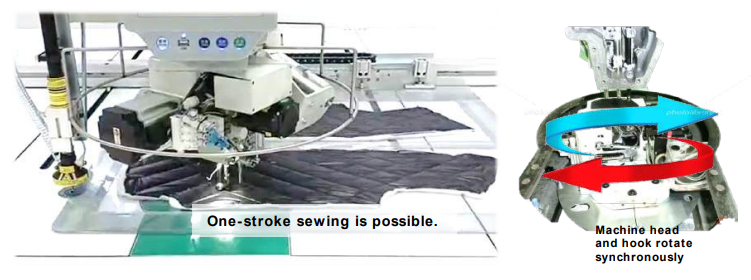

• 360° Head-Rotation With Synchronized Hook & Feed
  The head, hook, and feed mechanism rotate together to match the sewing direction. This ensures consistent seam quality on curves, diagonals, and full-circumference paths, eliminating direction-related variation.

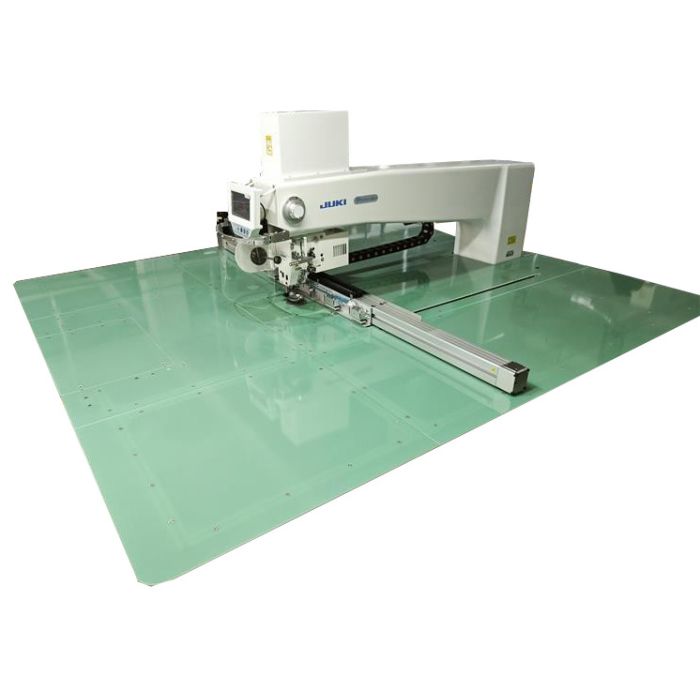

• Epoxy Worktable with Large 1,300×900 mm Sewing Field
  The wide sewing area enables one-stroke sewing of large patterns, drastically reducing repositioning steps and alignment errors on oversized templates or long continuous seams. The epoxy table resists contamination, helping prevent stains and keeping materials clean throughout long-cycle operations.

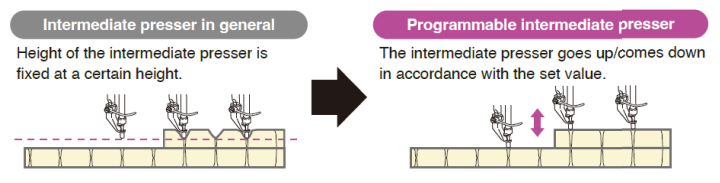

• Programmable Intermediate Presser (20 mm Lift, 0–9 mm Variable Position)
  The presser’s lower-dead-point height can be adjusted steplessly during sewing.
  This stabilizes multi-layered materials, preventing stitch skipping and thread breakage and producing clean pattern edges even on uneven assemblies.



• RFID Template Recognition for Automatic Program Loading
  The RFID (radio frequency identification) reader recognizes the template and automatically loads the associated pattern. This reduces setup steps and prevents program-selection errors during style changes.

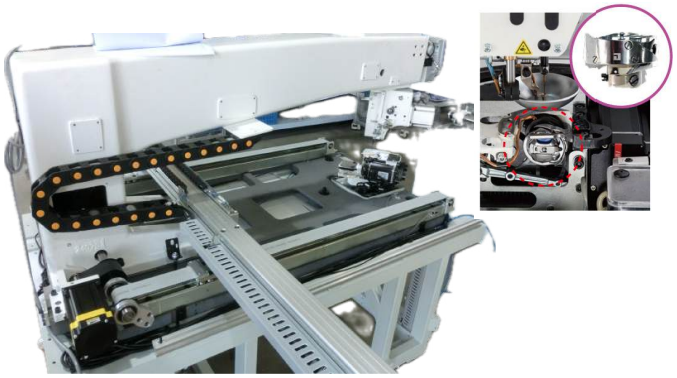

• Full-Rotary Double-Capacity Hook & Oil-Free Frame
  The high-capacity hook supports long cycle runs with fewer bobbin changes. Oil-free, rigid frame reduces contamination and contributes to consistent mechanical performance.



• Active Thread Tension for Stitch-by-Stitch Stability
  Active tension allows fine correction of needle-thread tension relative to material thickness and sewing direction, directly from the panel — ensuring balanced, predictable stitch formation.

How It Improves Your Workflow

• More Stable Quality on Complex Seams
  The 360° head-rotation system keeps the head, hook, and feed aligned with the sewing direction, so seam quality remains uniform on curves, diagonals, and continuous perimeter paths. This reduces variation between pieces and cuts down on rework caused by direction-related inconsistencies.

• Fewer Handling Steps on Large or Full-Perimeter Designs
  The 1,300×900 mm sewing field allows large patterns to run in a single stroke instead of multiple repositioned segments. This shortens handling time, minimizes alignment errors from repeated clamping, and stabilizes throughput on items that normally require multi-stage processing.

• Greater Reliability on Layered or Uneven Assemblies
  The programmable intermediate presser (20 mm lift, 0–9 mm position adjustment) maintains stable material control as thickness changes. By preventing material lift, stitch skipping, and thread breakage, it ensures continuous runs on structured or multi-layer components with fewer disruptions.

• Faster Style Changes With Lower Risk of Setup Errors
  RFID template recognition automatically loads the correct sewing program as soon as the template is detected. This reduces operator steps, prevents incorrect pattern selection, and keeps changeovers consistent — essential for multi-style production lines.

Who Benefits Most

✔ Automotive Interior Manufacturers — large stitched panels, seat components, trim outlines, and perimeter-defined structural shapes

✔ Technical-Textile Producers — laminated layers and precision-shaped technical pieces

✔ Upholstery & Seating Facilities — cushions, covers, and shaped seams on rigid or multi-layer materials requiring directional accuracy

✔ Apparel Lines — technical outerwear, protective garments, and reinforcement stitching on oversized jacket or coat sections
