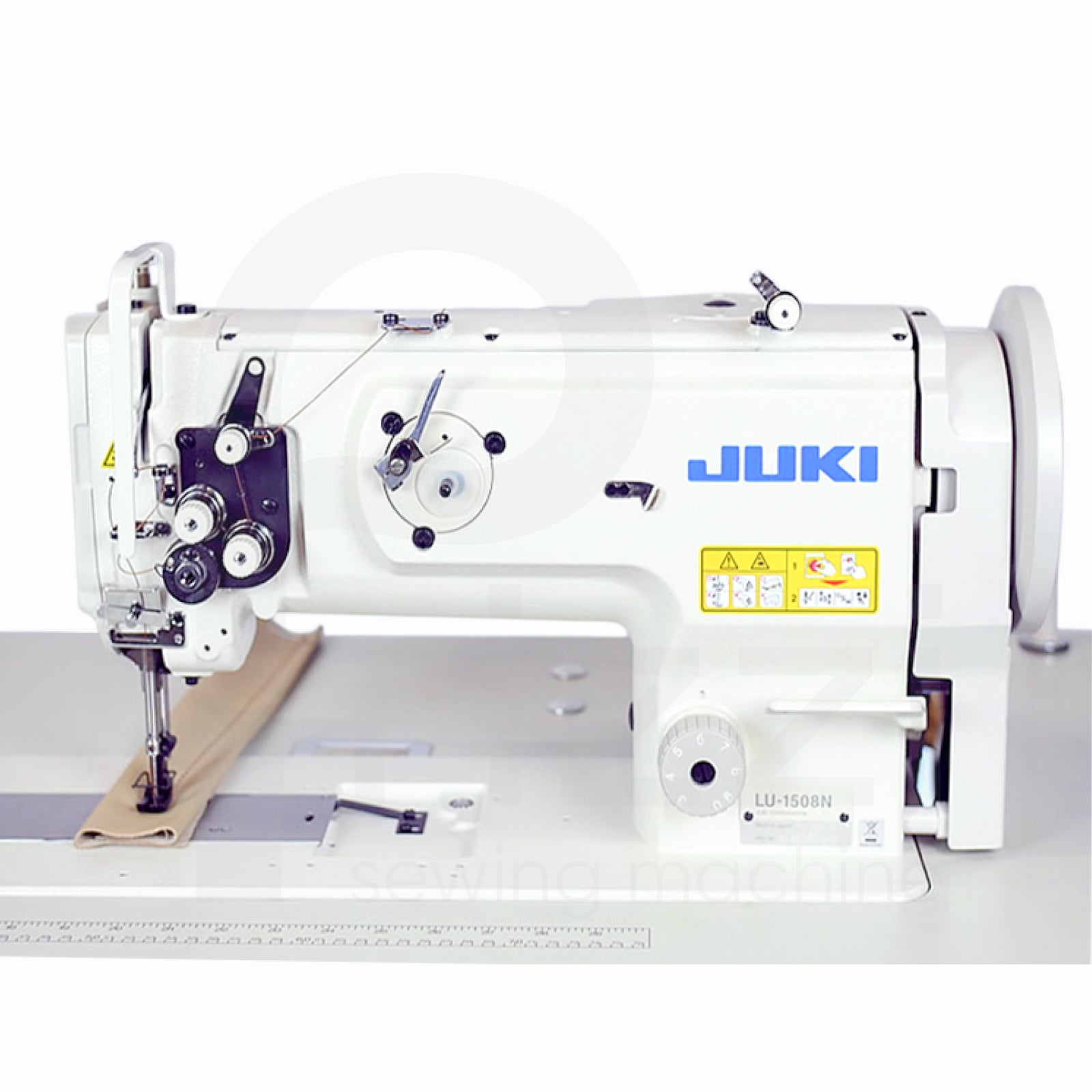

JUKI LU-1508NS Single Needle Unison-feed Industrial Lockstitch Machine with Vertical-axis Large Hook

Slip-Free Feeding on Heavy Stacks – Unison (walking-foot) + rectangular feed locus prevents ply shift and stitch gathering.

Fewer Bobbin Changes – Double-capacity vertical hook supports heavier thread and longer runs.

Tight, Even Seams – Dual-tension system stabilizes high-tension sewing with thick thread.

Shop-Tough Design – Safety clutch with push-button reset, centralized lubrication, large handwheel, and clear needle area.

Instant Stitch-Length Dial – Change stitch length in seconds for faster style changeovers.

Clear Needle Work Area – Better visibility → cleaner topstitch lines, fewer defects.

Front-Mounted Bobbin Winder – Reload without breaking operator flow.

Large Ø160 mm Handwheel – Precise manual control at starts/stops and thick transitions.

Built-In Knee Lifter (Bed-Integrated) – Lighter knee pressure reduces fatigue; quicker handling (non auto-trim models).

Full-Open Top Cover – Adjust from above without tilting the head; faster maintenance.

Standard Safety Clutch – Protects the hook during jams; push-button reset minimizes downtime.

Machine Type: 1-needle, unison (walking-foot) lockstitch
Hook: Vertical-axis double-capacity rotary hook
Application: Heavy-weight materials (leather, canvas, vinyl, coated fabrics)
Max Sewing Speed: 2,500 stitches/min
Max Stitch Length: 9 mm (forward/reverse)
Needle Bar Stroke: 36 mm
Presser Foot Lift: 9 mm by hand; 16 mm by knee
Alternating Foot Lift (Dial): 2.5–6.5 mm
Feed Motion: Rectangular feed (prevents stitch gathering)
Needle System (at delivery): 135×17 / 190R (Nm160); usable range approx. Nm125–Nm180
Thread Range: approx. #30–#5 (B46–B138 / Nm 60/3–20/3)
Tension System: Dual-tension (1-needle type)
Safety Mechanism: Built-in safety clutch, push-button reset
Lubrication: Centralized wick lubrication; hook auto-lubricated (use ISO VG32 oil)
Needle-to-Arm Distance: 255 mm
Bed Size: 517 × 178 mm
Head Weight: ~44.5 kg
Popular Options: Pneumatic auto-lifter (AK-147B), automatic reverse feed, bobbin-thread remaining sensor, DL device for instant max alternating-lift changeover.

DOWNLOADS:

Juki LU-1508N Instruction
