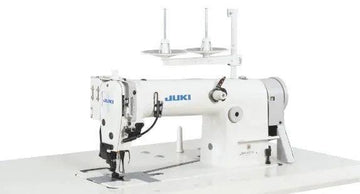

Juki MH-481U, 1-needle, Double Chainstitch Machine with Table & Servo Motor

Regular price $5,898.00
Sale price $5,898.00 Regular price
Unit price

The Juki MH-481 is a high-precision 1-needle double chainstitch machine designed for consistently beautiful seams on light- to medium-weight materials. It incorporates advanced mechanisms to enhance sewing quality and prevent common stitching issues, making it an excellent choice for professional garment production.

  • Order today for the fastest delivery:Oct 08 - Oct 12

  • Shipping: Pickup available at South El Monte Warehouse

Juki MH-481U, 1-needle, Double Chainstitch Machine with Table & Servo Motor

Juki MH-481U, 1-needle, Double Chainstitch Machine with Table & Servo Motor

Regular price $5,898.00
Sale price $5,898.00 Regular price
Unit price

How It Works

The MH-481 is equipped with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping, ensuring consistent stitching quality. The machine also features a thread clamp mechanism and tension release system, which help maintain uniform thread length after trimming and prevent needle thread slippage. With a simple lever operation, users can switch between safety stitching (to prevent loose stitches) and reverse feed stitching (for back-tacking). The inclusion of a sliding presser foot and a silicone oil lubricating unit prevents stitch skipping and puckering, while keeping the needle cool and preventing thread breakage, resulting in flawlessly finished seams.

ABOUT
FEATURES
SPECIFICATIONS
MANUALS & WARRANTY
FAQS

Juki MH-481

Upgraded Sewing Capabilities

Advanced Mechanisms

  • Thread Spreading Mechanism: Prevents stitch skipping.
  • Adjustable Needle Guard: Ensures accurate stitching.
  • Thread Clamp Mechanism: Maintains uniform thread length after trimming.
  • Tension Release Mechanism: Facilitates smooth thread handling.
  • Needle Thread Draw-Out Mechanism: Prevents needle thread slip-off.

All these features collectively contribute to superior sewing performance.

Versatile Stitching Options

Easy Operation

  • Safety Stitching (Condensation Stitching): Prevents loose stitches, ensuring secure seams.
  • Reverse Feed Stitching (Back-Tacking): Simple adjustment via the reverse feed lever stopper allows for easy alternation between stitching methods.

Consistently Beautiful Seams

Standard Features

  • Sliding Presser Foot: Prevents stitch skipping and puckering.
  • Silicone Oil Lubricating Unit:
    • Prevents needle overheating.
    • Enables use of foundation yarn or synthetic thread without breakage.

These features ensure consistently beautiful seams for light- to medium-weight materials.

Specifications

ENHANCED STITCHING PRECISION
The Juki MH-481 is equipped with a thread spreading mechanism and an adjustable needle guard that work together to prevent stitch skipping, ensuring precise and consistent seams every time.

CONSISTENT THREAD CONTROL
With its thread clamp mechanism, tension release system, and needle thread draw-out mechanism, the MH-481 maintains uniform thread length after trimming and prevents needle thread slip-off, delivering a reliable and professional finish.

VERSATILE STITCHING OPTIONS
Switch effortlessly between safety stitching (condensation stitching) and reverse feed stitching (back-tacking) using a simple lever operation, allowing you to adapt to different sewing requirements with ease.

FLAWLESS SEAM FINISHING
The machine features a sliding presser foot and a silicone oil lubricating unit, which prevent stitch skipping and puckering, while keeping the needle cool. This allows you to use delicate threads without breakage, ensuring beautifully finished seams on light- to medium-weight materials.

Machine Head: MH-481 (Flat-bed, 1-needle Double Chainstitch)
Max. Sewing Speed: 5,500 stitches per minute (sti/min)
Lift of the Presser Foot: By hand: 5mm; By knee: 10mm
Stitch Type: 1-needle double chainstitch
Needle: TV × 7 (#11) with a range from #9 to #18
Stitch Length: Adjustable from 1mm to 4mm (controlled by stitch dial)
Needle Bar Stroke: 30mm
Looper System: Inclined crank
Looper Stroke: 21.5mm
Looper Stroke (Front and Rear): 2.1mm~3.3mm
Lubrication System: Automatic lubrication using JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Thread Take-up: Needle bar thread take-up
Oil Crankcase: Not applicable (automatic lubrication system used)
Number of Threads: The exact number is not explicitly mentioned in the specifications, but typically a 1-needle double chainstitch machine uses 2 threads.
Number of Needles: 1 needle
Automatic Foot Lift: Not provided
Automatic Bartack: Not provided
Automatic Thread Trimming: Not provided
Power Requirement / Power Consumption: Single-phase, 3-phase / Rating 425VA

DOWNLOADS:

Juki MH-481 Instruction
