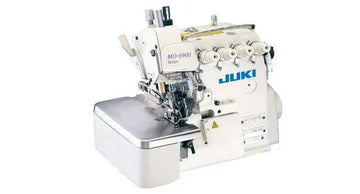

Juki MO-6904J-0F6700 Variable Top-feed Overlock for Extra Heavy-weight Materials with Table & Servo Motor

Regular price $7,488.00
Sale price $7,488.00 Regular price
Unit price

The Juki MO-6900J Series is an advanced, full-featured overlock machine designed specifically for extra heavy-weight materials. It features a newly developed variable top-feed mechanism that ensures smooth and even stitching by moving the top and bottom feeds separately, making it ideal for handling thick, multi-layered fabrics.

  • Order today for the fastest delivery:Oct 08 - Oct 12

  • Shipping: Pickup available at South El Monte Warehouse

Juki MO-6904J-0F6700 Variable Top-feed Overlock for Extra Heavy-weight Materials with Table & Servo Motor

Juki MO-6904J-0F6700 Variable Top-feed Overlock for Extra Heavy-weight Materials with Table & Servo Motor

Regular price $7,488.00
Sale price $7,488.00 Regular price
Unit price

How It Works

The MO-6900J Series handles heavy fabrics with precision, thanks to its advanced feed mechanism that independently controls the top and bottom feeds, ensuring smooth, even stitching. The machine's durability is enhanced by a strong needle bar system with upper and lower bushings, and a cartridge-type oil filter with a cooling fan. A micro-lifter reduces operator fatigue, while the needle thread heat remover and cooler maintain high seam quality, even at high speeds. Adjustable settings make it easy to adapt to various materials, ensuring consistently professional results.

ABOUT
FEATURES
SPECIFICATIONS
MANUALS & WARRANTY
FAQS

Juki MO-6900J Series

Advanced Full-Featured Machine for Extra Heavy-Weight Materials

The MO-6900J Series is a cutting-edge sewing machine designed specifically for extra heavy-weight materials. It features a newly-developed feed mechanism that allows the top and bottom feeds to move separately. This innovation enhances feeding capacity and provides a stronger cloth-biting force, preventing uneven material feed even with the heaviest fabrics.

Enhanced Durability and Reliability

Built for longevity and dependability, the machine incorporates several robust mechanisms:

  • Needle Bar Mechanism: Utilizes upper and lower bushings for increased durability.
  • Cartridge Type Oil Filter and Cooling Fan: Ensures reliable operation and maintains optimal performance.

Operator Comfort and Seam Quality

To reduce operator fatigue, the MO-6900J Series is equipped with a micro-lifter designed for optimal balance, minimizing noise and vibration and ensuring a comfortable working experience. The machine also features:

  • Needle Thread Heat Remover and Needle Cooler: Prevent stitching issues during high-speed sewing, enhancing seam quality.
  • Various Adjusting Mechanisms: Including a micro-adjusting mechanism that can be easily adjusted to suit any material, ensuring the machine performs under the best conditions.

This advanced machine is ideally suited for producing high-quality seams with extra heavy-weight materials, offering both reliability and ease of use.

Specifications

POWERFUL FEED MECHANISM
The Juki MO-6900J Series features a newly developed feed mechanism that independently controls the top and bottom feeds, ensuring smooth and even fabric feeding, even with extra heavy-weight materials.

ENHANCED DURABILITY
Built with a robust needle bar mechanism utilizing upper and lower bushings, this machine offers long-lasting durability. The cartridge-type oil filter and cooling fan maintain optimal performance during intense sewing tasks.

OPERATOR COMFORT
Equipped with a micro-lifter, this machine minimizes operator fatigue, making long sewing sessions more comfortable and efficient.

CONSISTENT SEAM QUALITY
The machine includes a needle thread heat remover and cooler, which help prevent stitching issues at high speeds, ensuring high-quality seams every time.

Machine head: MO-6900J Series (Variable Top-feed Overlock Machine for Extra Heavy-weight Materials)
Max. sewing speed: 6,000 stitches per minute (sti/min)
Lift of the presser foot: Maximum 8mm
Needle: DO×5 (excluding some subclass models)
Stitch length: 2.5mm to 5mm (MO-6904J and MO-6916J)
Overedging width: 4.8mm, 6.4mm (depending on the model)
Differential feed ratio for gathering: Maximum 1:3.8, for stretching: Maximum 1:0.6
Needle bar stroke: 28.8mm
Inclination angle of the needle: 20°
Vertical stroke of top feed dog: 8.5mm
Longitudinal stroke of top feed dog: 2.7mm to 7mm (varies by machine specifications)
Lubrication system: Automatic lubrication
Lubricating oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle cooler: Provided as standard
Needle thread heat remover: Provided as standard
Micro-lifter: Provided as standard
Stitch adjusting method: By push-button
Differential feed adjusting method: By lever with micro-adjustment
Weight of the machine head: 29kg
Type of fabric: Extra heavy-weight materials such as denim, heavy-duty fabrics, mats, and carpets

DOWNLOADS:

Juki MO-6900J Instruction

U.S.WARRANTIES:

Lifetime Warranty: All of our custom sewing tables are backed by a lifetime warranty. We stand by the quality and durability of our tables, ensuring they meet your exact needs for the long haul.

Sewing Machines: Our sewing machines come with the standard manufacturer's warranties. For specific details, please refer to the warranty information provided by the manufacturer of your machine.

DISCLAIMER: Due to the nature of shipping heavy and industrial equipment, minor marring or scratches may occur during transit. These cosmetic imperfections do not impact the functionality or performance of the equipment.

1. Are PRIZZI’s sewing tables compatible with all machine brands?

Yes, our custom-built tables are compatible with most industrial sewing machines, including KANSAI, PEGASUS, and MITSUBISHI. We tailor each table to fit specific machine models, ensuring perfect integration for your operation. Simply provide us with your machine’s specifications.

2. How durable are PRIZZI tables?

Our tables are built with premium materials and undergo a rigorous quality control process. Designed for heavy-duty, industrial use, they provide stability and precision, ensuring longevity even in high-demand environments.

3. Can I customize tables for my specific needs?

Absolutely! We offer a variety of customization options, from table dimensions to additional features like vibration dampening or specialized work surfaces. Let us know your requirements, and we’ll design a table that fits perfectly into your workflow.

4. How quickly can I expect my order?

We pride ourselves on fast, reliable shipping. Most standard orders ship within 5-7 business days. For custom designs, delivery timelines vary based on complexity, but we always aim for efficient turnarounds.

5. What support do I get after purchasing?

We offer a lifetime warranty on all tables, ensuring your investment is protected.

6. How do I place a bulk order?

For bulk orders, simply contact our sales team. We offer tailored pricing, custom design consultations, and expedited shipping to ensure your business runs smoothly without delay.
