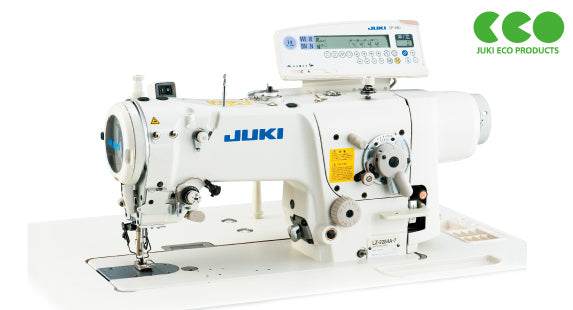

JUKI LZ-2284A-7WBAK Industrial Single Needle High-Speed Lockstitch Zigzag Machine with Auto-Trim & Standard / 3-Step Zigzag Changeover

JUKI LZ-2284A-7WBAK — High-Speed Direct-Drive 1-Needle Lockstitch Zigzag Machine for Apparel Production with Automatic Thread Trimming & Standard / 3-Step Zigzag Changeover (SC-920A Control Box, CP-18A Operation Panel)

The JUKI LZ-2284A-7WBAK delivers precision zigzag stitching and smooth operation even at 5,000 stitches per minute. Equipped with a direct-drive motor and a suite of automatic functions — automatic thread trimming, automatic reverse feed, and auto foot lifter — it streamlines production and delivers consistently smooth, soft seams across a wide range of materials.
A single lever switches instantly between standard and 3-step zigzag, making it ideal for versatile garment production and decorative stitching.

What Sets the JUKI LZ-2284A-7WBAK Apart

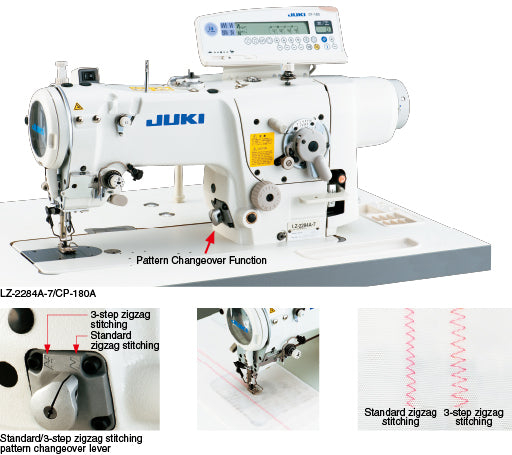

• Two Zigzag Patterns, One Machine
  Switch between standard and 3-step zigzag with a simple lever — no re-adjustment, no downtime.

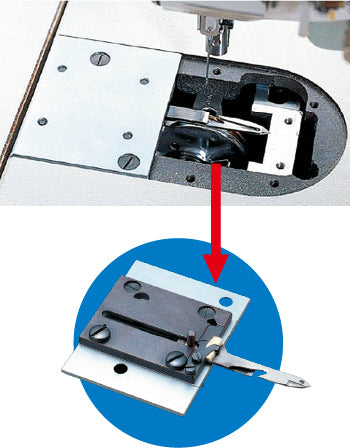

• Automatic Thread Trimming System
  A reliable cam-driven knife trims the thread cleanly, even during wide zigzag motion.



• Built-In Direct-Drive Motor
  Compact servo motor reduces vibration, noise, and power loss for quiet, energy-efficient operation.

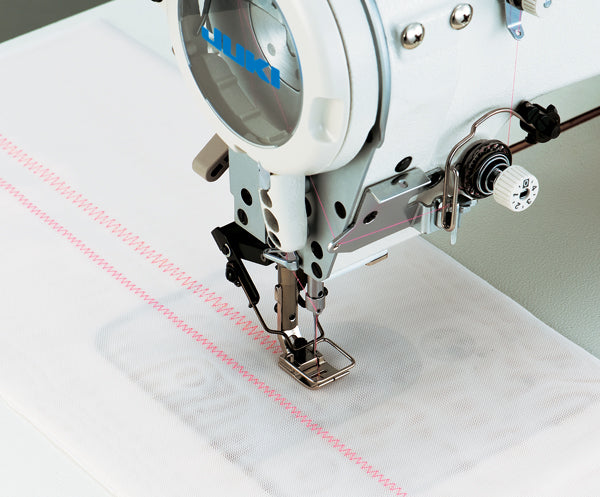

• Difficult-to-Sew Fabric Control
  The micro-lifter mechanism minimizes material slippage and prevents damage from the presser foot, keeping even delicate or tricky fabrics stable and smooth during stitching.

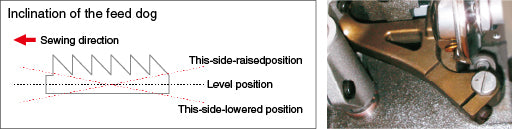

• Adjustable Feed Mechanism
  The feed dog’s height and angle can be finely adjusted, helping the machine feed through layered or uneven sections smoothly and keep seam formation consistent throughout.



• Automatic Reverse Feed & Auto-Lifter
  The machine features automatic reverse stitch for reinforcement and an AK85 auto-lifter that raises the presser foot electronically at key moments — speeding handling and reducing effort.

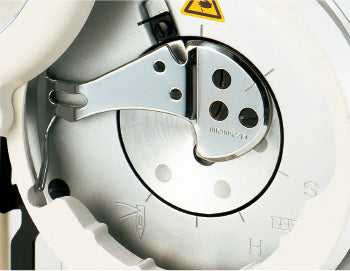

• Easy Feed and Hook Timing Adjustment
  Engraved guide marks on the faceplate help adjust the synchronization between the needle, feed dog, and hook to avoid skipped stitches, improve seam consistency, and optimize performance for different materials.



• Enhanced Visibility and Comfort
  The increased presser foot lift expands the visible area, and an adjustable LED light illuminates the needle entry point, reducing eye strain and operator fatigue when handling small or intricate seams.



Included in the Package

•  SC-920A Control Box
  Energy-efficient control unit that stabilizes motor drive under voltage fluctuations. Provides smooth acceleration and consistent torque for clean stitching at high speeds.

• CP-18A Operation Panel
  Compact, easy-to-use control panel for adjusting speed, trimming, and back-tack timing directly from the workstation. Simplifies operation and ensures consistent performance across operators.

How It Improves Your Workflow

• Faster Stitch Pattern Changes
  The quick lever switch between standard and 3-step zigzag saves setup time on varied seam types.

• Cleaner Finishes, Less Manual Work
  Automatic trimming and reverse feed eliminate scissors work and back-tacking errors.

• Reduced Noise and Vibration
  Direct-drive power keeps operation stable and comfortable throughout long production hours.

• Higher Efficiency, Lower Fatigue
  The auto functions, LED lighting, and micro-lifter allow steady performance with minimal strain.

Who Benefits Most from the JUKI LZ-2284A-7WBAK

✔ Lingerie, shapewear and foundation garment manufacturers – elastic joins, lace attachments, and smooth edge finishing

✔ Swimwear and sportswear producers – durable stretch seams that keep elasticity under movement and repeated washing

✔ Apparel and fashion workshops – decorative topstitching, soft seam finishing, and reinforcement on lightweight garments
