Industrial Lockstitch Machine LZ-2290CF-7WBAK156

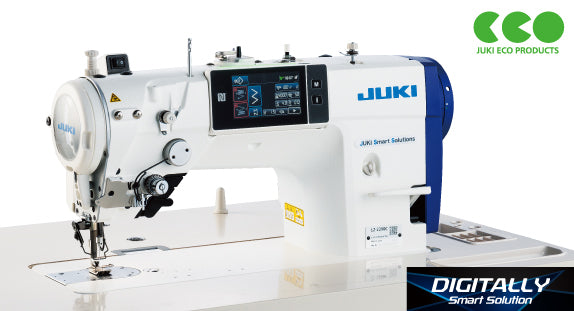

JUKI LZ-2290CF-7WBAK156 — Fully Digital High-Speed Single Needle Semi-Dry, Direct-Drive Zigzag Sewing System with Automatic Foot Lifter, Auto Thread Trimmer & Wiper (SC-955AD Control Box)

The JUKI LZ-2290CF-7WBAK156 is a fully digital zigzag sewing system that combines intelligent automation with high-speed precision. It detects fabric thickness, adapts feed and presser pressure in real time, and maintains perfect thread balance through its rotary active tension system. Operating at up to 5 000 stitches per minute with a 10 mm maximum zigzag width, it streamlines production and ensures refined, consistent seams across a wide range of apparel applications.

What Sets LZ-2290CF-7WBAK156 Apart

• Digital Precision and Effortless Setup
  A fully digital control system manages feed, tension, and pressure while the color touch panel centralizes all adjustments — from stitch timing to pattern selection. Saved settings can be recalled instantly, ensuring uniform results and faster transitions between styles or operators.

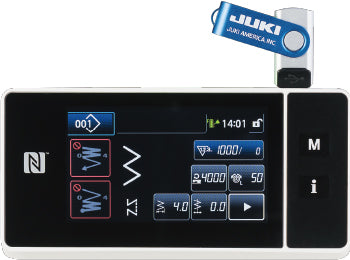

• Smart Connectivity with Internet of Things (IoT)
  Through USB and near field communication (NFC), sewing data such as stitch parameters, feed timing, and tension settings can be transferred to a machine instantly. This IoT-enabled system ensures synchronized adjustments across production lines, maintaining consistent quality and reducing setup time.

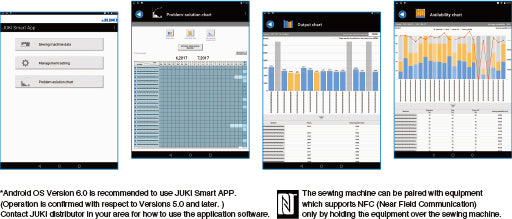

• Real-Time Data Insights with JUKI Smart APP
  Track sewing data, output, and machine status directly through the JUKI Smart APP. Graphs and charts reveal performance trends, helping identify bottlenecks and maintain stable output quality.



• Broader Stitch Possibilities in One Machine

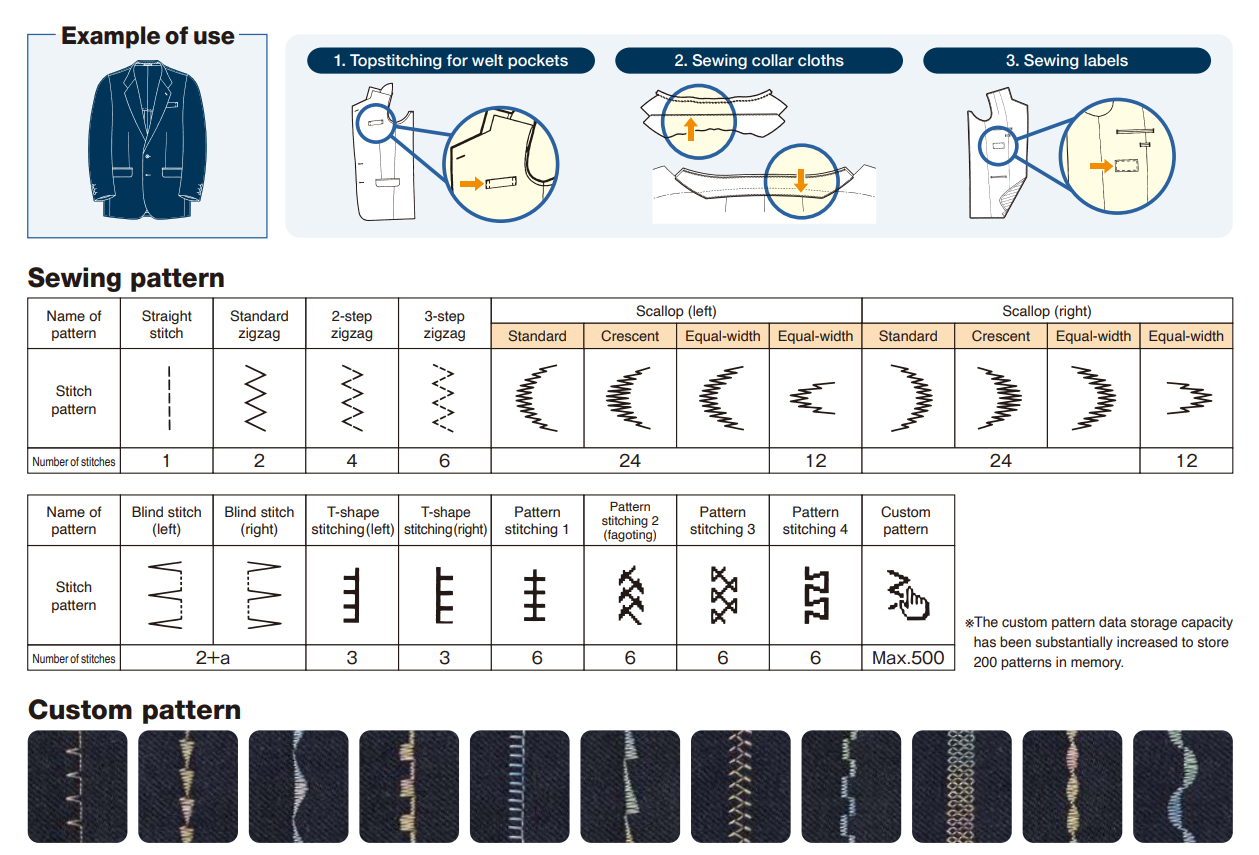

  With 11 types / 20 patterns of preset basic stitch shapes — including zigzag, T-stitch, and decorative options — the machine adapts easily to a variety of garment applications. Up to 200 custom stitches can be programmed directly from the panel, supporting both functional and design-driven sewing.

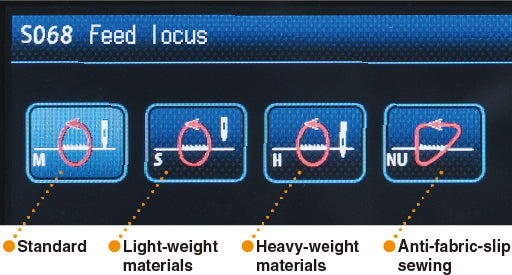

• Cleaner Seams with Digital Feed Timing
  Feed timing can be fine-tuned digitally to suit the fabric and process, from delicate materials to structured apparel. This allows the operator to achieve the desired seam quality—from soft to firm—while reducing fabric slippage and improving responsiveness to different materials.



• Smooth Handling, Even at Top Speed
  The active presser-foot system adjusts pressure as sewing speed increases, keeping the fabric stable and preventing lifting or distortion. High-speed sewing remains precise and controlled, even on layered or elastic materials.

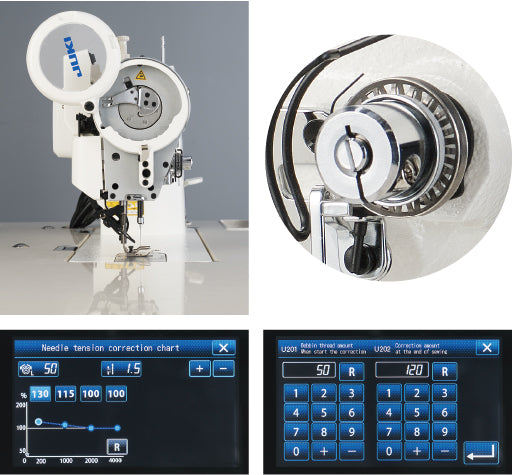

• Stable Thread Control Across Any Fabric
  The rotary active tension system responds to every change in fabric thickness or speed, automatically balancing upper and lower tension. This eliminates skipped stitches and irregular seam appearance without manual retuning.

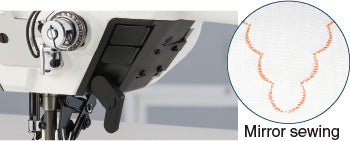

• Instant Access to Critical Functions
  The triple hand switch places three major controls — touch-back, mirror stitching, and multi-layer correction — right at the operator’s fingertips, saving time and improving control during detailed work.



• High-Speed Power for Demanding Operations
  Operating at up to 5 000 stitches per minute and a 10 mm maximum zigzag width, the machine keeps up with high-volume production and delivers clean, stable stitching during rapid runs or detailed decorative work.


• Effortless Sewing Through Multi-Layer Sections
  The multi-layer detection system automatically senses thickness variations and adapts feed and pressure to match. Seams remain flat and even when crossing pocket edges, waistbands, or reinforced panels.

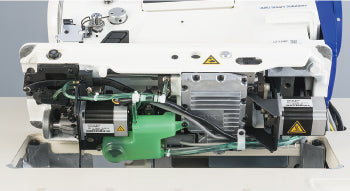

• Cleaner Lubrication, Lower Maintenance
  The semi-dry head uses a grease-supplied system with no oil pan, preventing fabric stains and cutting maintenance frequency. Internal parts stay lubricated, keeping performance smooth and reliable.



• Less Strain for Operator, Shift After Shift

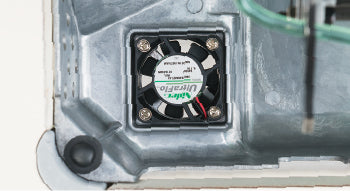

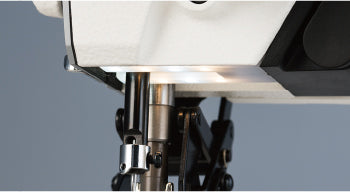

  Bright, adjustable LED lighting improves visibility for fine work, while the cooling fan maintains stable operating temperature during long production runs.




• Lower Energy Use, Longer Machine Life
  Automatic backlight-off and sleep modes reduce electricity consumption during idle time. Less heat, lower strain on components, and reduced running costs keep the machine efficient and dependable over years of operation.

Included in the Package

• SC-955AD Control Box
  An advanced digital drive unit that powers and synchronizes all major functions. It provides smooth acceleration, precise needle positioning, and stable high-speed operation — ensuring consistent stitch quality throughout production.

How It Improves Your Workflow

• Uniform Quality, Every Shift
  Digital control of feed, tension, and pressure keeps every stitch precise and balanced — flawless results, no matter the operator or shift.


• Setup That Takes Minutes, Not Hours
  IoT connectivity and a smart touch panel let you save, share, and recall settings instantly — effortless transitions between styles and materials.


• Higher Output Without Rework
  With 5 000 stitches/minute and a 10 mm max zigzag width, it matches output demands while keeping every seam clean, steady, and professional.


• Confidence on Every Fabric
  Intelligent presser-foot and tension systems respond to fabric thickness in real time, maintaining smooth, distortion-free seams on any material.


• Less Maintenance, More Uptime
  The semi-dry head, automatic lubrication, and direct-drive motor cut maintenance, keeping production running longer between service intervals.

Who Benefits Most

✓Lingerie manufacturers – elastic edges, lace attachments, decorative zigzag seams
✓Swimwear and sportswear producers – stretch panels, bindings, and reinforcement stitching on high-movement areas
✓Fashion and apparel factories – collars, pockets, plackets, decorative seams
✓Children’s wear and uniform lines – neat, low-tension seams built for comfort and durability
✓Sample rooms and design studios – small-batch runs and prototypes
