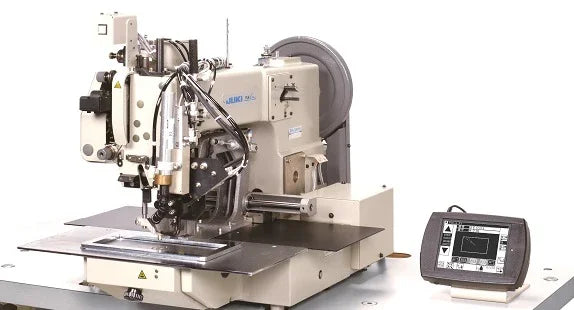

Juki PLK-G2008H-BTRM Computer-Controlled Pattern Stitching Machine for Extra-Thick Materials Sewing Area 200x80

Powerful Needle Penetration Force

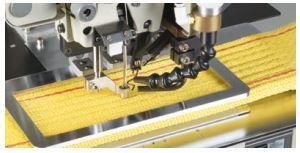

Delivers exceptional needle strength and stability, allowing consistent, high-quality stitching on ultra-thick or multi-layer synthetic materials such as safety belts, ropes, and slings.

Heat-Cut Thread Trimming System
Integrated thermal cutter cleanly seals upper and lower thread ends, preventing fraying and ensuring maximum seam durability on heavy-duty products.

Extra-Thick Material Compatibility
Engineered for industrial applications — handles extreme material thicknesses with uniform tension and strong, reinforced stitch formation.

High-Speed Data Processing with USB Support
Enables fast pattern input, correction, and data transfer via USB, simplifying setup and improving workflow efficiency.

Optional Rope Clamp Device (MP-E2008H)
Provides secure, one-touch clamping of thick ropes or tubular materials for accurate and reliable stitching performance.

Advanced Programmable Control
Allows precise stitch length adjustment (0.1–20.0 mm) and pattern scaling (10–200%) for flexible customization in technical sewing.

Durable Semi-Rotary Hook System
Ensures reliable thread handling and extended service life, even under the stress of heavy industrial sewing.

User-Friendly 5.7” LCD Touch Panel
Intuitive interface with real-time pattern visualization and easy navigation enhances productivity and minimizes operator error.

Application: Extra-heavy materials (safety belts, ropes, slings)
Sewing Type: Single-needle lockstitch
Hook: Special semi-rotary (bobbin-removal type)
Needle: 794 #230
Max Sewing Speed: 700 sti/min (intermittent or continuous feed)
Stitch Length: 0.1–20.0 mm (resolution 0.1 mm)
Max Stitches per Pattern: 20,000
Max Stored Patterns: 900 (internal memory)
Memory Device: USB flash (data import/export supported)
Outer Presser Type: Pneumatic
Presser Foot Lift: 20 mm
Intermediate Presser Height: 25 mm
Zoom Function: 10–200% per X/Y axis (0.1% steps)
Thread Trimming: Heat-cut system (lower thread cutting only)
Operation Panel: 5.7” LCD touch screen (LED backlight)
Dimensions (W×D×H): 1,200 × 780 × 1,320 mm
Weight: 170–172 kg
Power Supply: 200–240V (single/three-phase)
