Automatic Fabric Spreading Machine Serkon MN1 Mini Master

Serkon MN1 Mini Master — Fully Automatic Fabric Spreading Machine with 265 lbs Max Roll Weight

The Serkon MN1 Mini Master replaces manual spreading with a single-operator automated process — resolving the tension distortion, edge drift, and length inconsistency that manual layering introduces across a production run. The cradle feed system handles wide range of woven and knit materials, including high-stretch, in roll or flat-folded form, and delivers tension-free spreading with edges aligned automatically on every ply. With 328 feet per minute maximum spreading speed, the machine keeps the cutting room supplied without becoming the bottleneck. The easy-to-navigate touchscreen stores up to 50 fabric setup files, keeping repeat jobs fast to configure and consistent to run. The result is a cutting room where lays are built to the same standard — in tension, alignment, and length — regardless of the material type or the operator at the controls.

Please note: the Serkon MN1 is supplied as standard with an automatic end cutter and movable front catcher. Other attachments are available as options.

What Sets the Serkon MN1 Mini Master Apart?

• Cradle Feed System — Tension-Free Spreading for Rolls Up to 265 lbs

The cradle feed system with belt feeding ensures easy loading and unloading of fabric rolls up to 265 lbs (120 kg). The belt feed mechanism delivers fabric to the table without tension — woven materials, knits, high-stretch fabrics, and tubular knits in roll or flat-folded form — all spread without distortion. A seamless cradle feed belt keeps the fabric edge from slipping underneath, maintaining clean feeding throughout the run.

• Intelligent Fabric Feeding System (IFS) with Variable Speed Control

The IFS measures fabric tension dynamically during spreading and adjusts feeding in response. Spreading speed is independently adjustable for forward and backward travel, with a Save Time function that optimizes return speed and reduces the non-productive portion of each cycle.

• Automatic Edge Alignment — Every Ply Registered to the Same Line

The electronic edge control system monitors and corrects fabric edge position continuously, so every layer lands in the same position. Edge misalignment — one of the primary causes of cutting waste and pattern deviation — is removed from the process.

• Zigzag and Standard Spreading Modes — Lay Configuration Flexibility

Standard spreading with transversal cutting and zigzag spreading with front and end catchers are both available. The machine inverts between face-up and face-down spreading, giving the facility full control over ply orientation for any fabric or cutting plan.

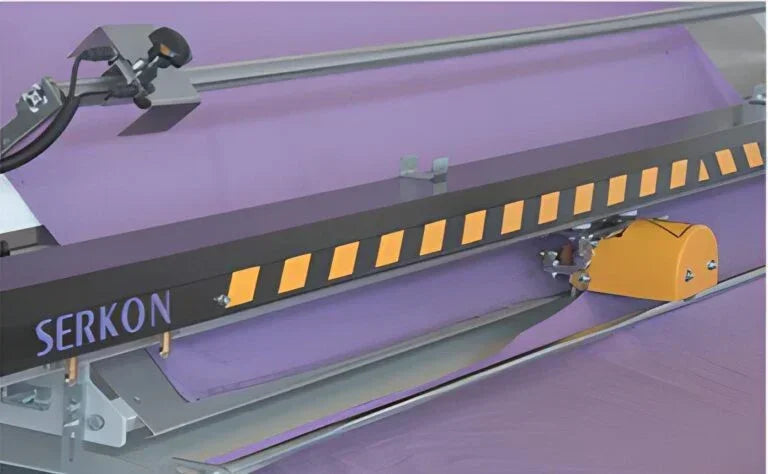

• Automatic Transversal Cutting Unit — End Cutting Built Into the Cycle

An automatic rotary blade cutting unit is included as standard, with automatic adjustment to the current spread height as layers accumulate. End cuts are precise and consistent — the operator does not need to step in between plies.

• User-Friendly Touchscreen — Fast to Learn, Fast to Configure

The 5.7" LG touchscreen presents a graphical interface designed to be fast to learn and easy to use at any experience level. Up to 50 fabric setup files can be stored and recalled for repeat jobs — parameters are retrieved rather than re-entered, keeping setup time on familiar fabrics to a minimum. Password protection keeps settings locked to authorized personnel.

• Programmable Lay Management — Length, End Allowance, and Fault Handling

Spreading length, end allowance, ply count, tension settings, and zigzag or one-way selection are set and stored in the control system. When a defect appears on the roll, programmable shifting points allow the operator to cut around it and continue the spread without restarting the cycle.

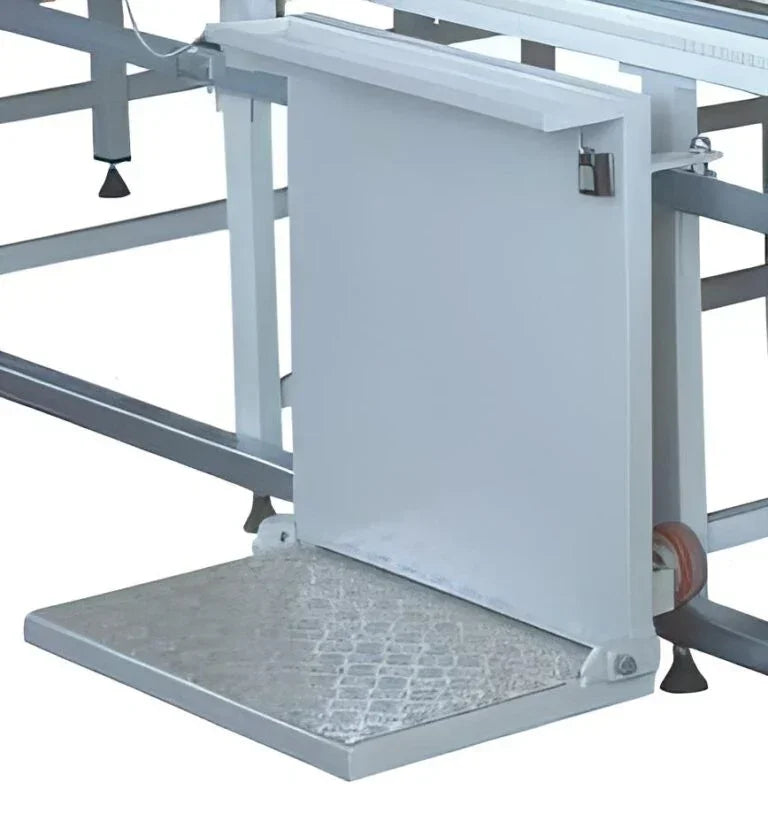

• Safe and Ergonomic Operation — Platform and Safety System

Two safety photocells monitor the front and rear of the machine during operation, stopping the machine automatically if a person or obstacle enters either zone. The movable operator platform travels alongside the table for the full length of the spread, giving the operator consistent visibility and control throughout the run. Individual sensors can be disabled from the control panel when the process requires it.

How the Serkon MN1 Mini Master Improves Your Workflow

• Manual Spreading Replaced by a Single-Operator Process

Fabric spreading becomes single-operator task. The Serkon MN1 spreads faster than a manual team, maintains consistent tension and edge alignment across every ply, and keeps performance steady as the shift progresses.

• Faster Setup on Repeat Fabrics

With up to 50 fabric setup files stored in the system, repeat jobs do not require re-entering parameters. The operator recalls the profile, confirms the settings, and the machine runs to the same specification as the previous spread on that fabric. Setup time on familiar orders is reduced to a retrieval step.

• Fabric Waste Controlled at the Source

Accurate lay length, programmable end allowance, automatic edge alignment, and the ability to efficiently handle faulty fabric sections together reduce the material lost at ends, edges, and defect locations. The software tracks spread length and reports fabric usage, giving the cutting room data to measure and improve material utilization over time.

Who Benefits Most

✓Small and medium apparel manufacturers — operations producing at volume where manual spreading has become a bottleneck but a full-scale spreading system is not yet justified

✓Cutting rooms handling mixed fabric orders — facilities running woven, knit, and stretch fabrics across different orders who need one machine that handles varied materials

✓Operations under labor cost pressure — facilities looking to reduce spreading headcount while maintaining or improving lay quality and consistency
