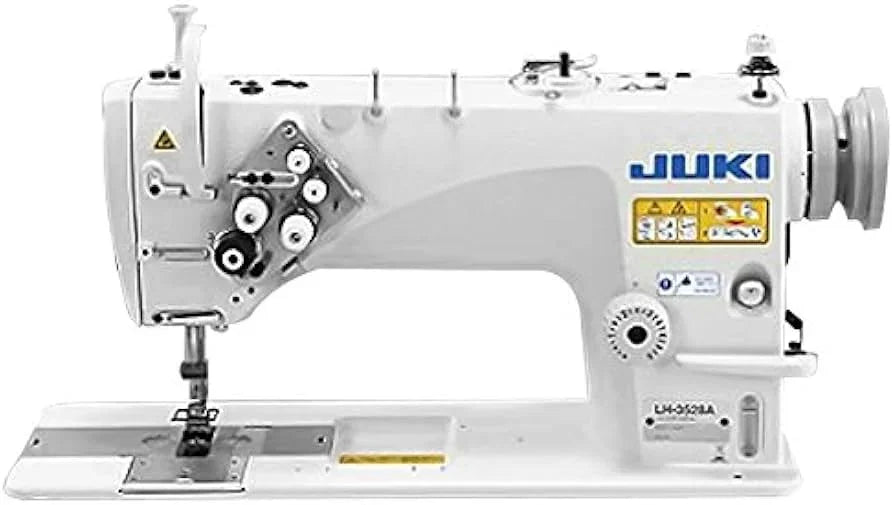

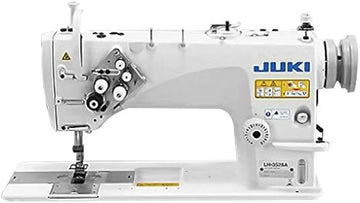

JUKI LH-3528A-FA00S Industrial Double Needle Semi Dry Head Lockstitch Machine

Semi-Dry Head with Advanced Lubrication
Prevents oil staining while ensuring smooth, long-term operation through a precise minute-quantity hook lubrication system.

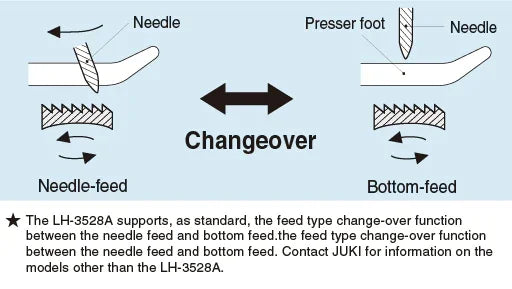

Convertible Feed System (Needle Feed ⇄ Bottom Feed)
Switch easily between feed types to minimize puckering on lightweight fabrics or improve handling on foundation materials.

Vertical-Axis Regular Hook
Delivers stable hook timing and consistent stitch formation even at high speeds.

Enhanced Thread Tension Control
Dual-type tension controllers provide clean, puckering-free seams tailored to foundation and lightweight materials.

Precision Sewing at 3,000 sti/min
Maintains uniform stitch quality, ideal for delicate foundation garments and high-accuracy operations.

Material-Friendly Micro-Lifter
Allows slight presser foot lift for handling elastic or textured fabrics while preserving their original feel.

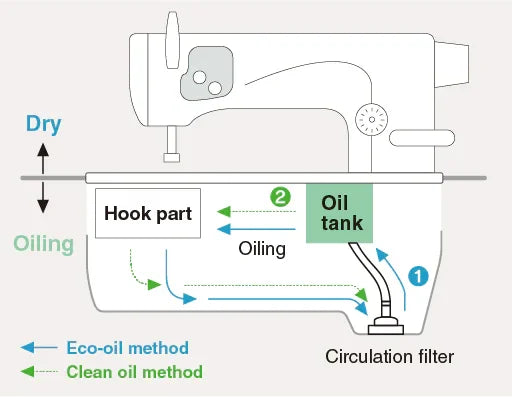

Eco-Oil & Clean Oil Methods
Selectable oiling systems reduce maintenance, oil consumption, and keep the hook section clean for stable performance.

Top-Accessible Adjustments
Feed system and timing adjustments can be made from the top, speeding up setup changes and reducing downtime.

Application: Foundation / Medium-weight materials
Hook: Vertical-axis regular hook
Lubrication: Semi-dry (hook section: minute-quantity lubrication, tank system)
Max. Sewing Speed: 3,000 sti/min
Distance from Needle to Machine Arm: 120 mm (H) × 266 mm (W) × 87 mm (jaw height)
Feed System: Changeover between needle feed and bottom feed
Max. Stitch Length: 4 mm
Needle Bar Stroke: 33.4 mm
Thread Take-Up: Slide type
Tensioner: Independent right & left needles type (lockstitch)
Thread Winder: Built-in machine head
Presser Foot Lift: By hand 7 mm / By knee 13 mm
Oiling Method: Eco-oil method (circulation type) / Clean oil method
Tank Capacity: 280 cm³
Lubricating Oil: JUKI New Defrix Oil No.1 (ISO VG7 equivalent)
Needle: DP×5 (#10) / #9–#16
Package Dimensions: 768 mm (H) × 341 mm (W) × 744 mm (L)

DOWNLOADS:

Juki LH-3500 Instruction
