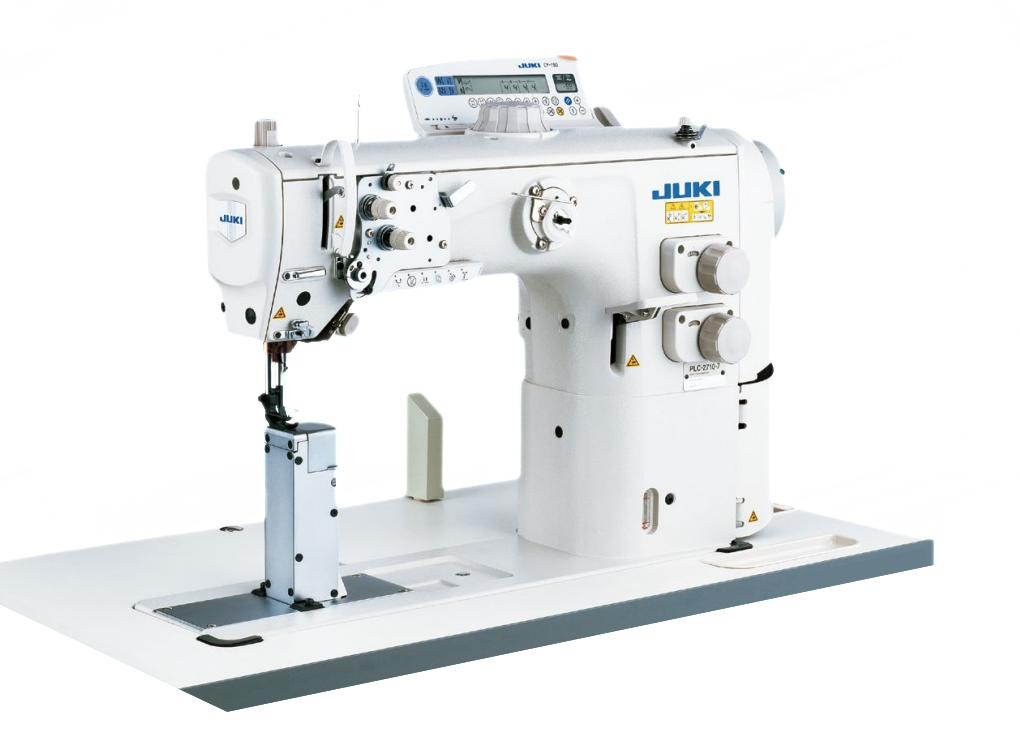

JUKI PLC-2710NS-70BB Industrial Single Needle Direct-Drive Unison-Feed Heavy-Material Lockstitch with Auto-Trim (SC-922B Control Box, CP-18C Operation Panel)

JUKI PLC-2710NS-70BB — Post-Bed, 1-Needle, Unison-Feed, Heavy-Material Lockstitch with Automatic Thread Trimmer & Direct Drive (SC-922B Control Box, CP-18C Operation Panel)

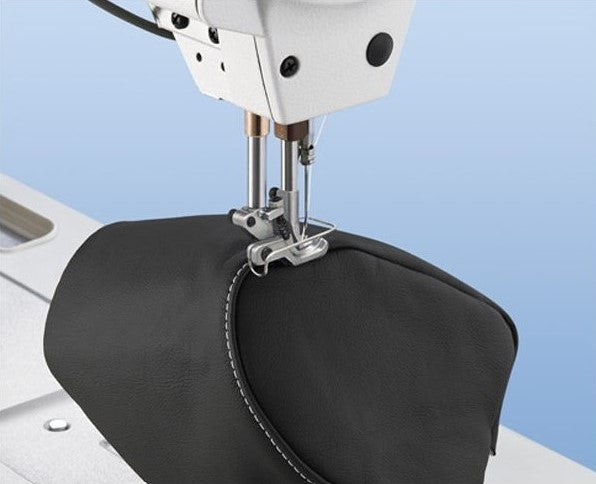

Built for car seats, sofas, bags, and other heavy goods, the JUKI PLC-2710NS-70BB pairs a post-bed with true unison feed and a vertical-axis large-capacity hook to keep thick stacks moving cleanly around 3D shapes. The direct-drive head adds automatic thread trimming and on-head controls, so you get stable quality, faster changeovers, and fewer reworks on demanding materials.

What Sets JUKI PLC-2710NS-70BB Apart?

• Post-Bed Geometry for 3D Work
  170 mm post height and 347 mm needle-to-arm clearance provide real room to maneuver seat panels, bolsters, and other shaped parts.



• Unison Feed with Tunable Traction
  Walking foot, needle, and feed dog move in sync; cam-eccentric and upper/lower feed-ratio adjustments let you dial grip for slippery or thick stacks.

• Large 2.0-Fold Vertical Hook
  The large-capacity vertical-axis hook supports heavier thread ranges and longer runs while keeping loop formation stable on dense materials.

• 12 mm Max Stitch for Bold Topstitching
  Delivers long, uniform stitches for visible decorative lines and robust seams on padded assemblies.

• Direct-Drive Head with Auto Thread Trimming
  Integrated high-torque motor improves penetration on multilayer builds, and the automatic trimmer shortens cycles and keeps finishes tidy.

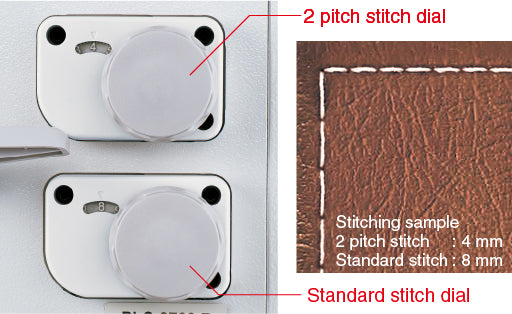

• Two-Pitch Stitch-Length Changeover
  Switch instantly between two preset stitch lengths at the head for fast transitions between decorative and structural seams.

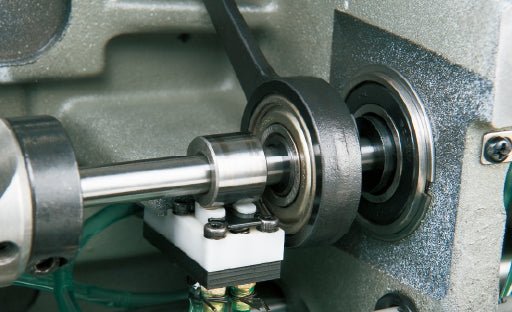

• Low-Speed-Reliable Lubrication + Quieter Drive
  Revised oiling maintains feed at low RPM, while the redesigned hook/bevel gear reduces noise and vibration for smoother running.

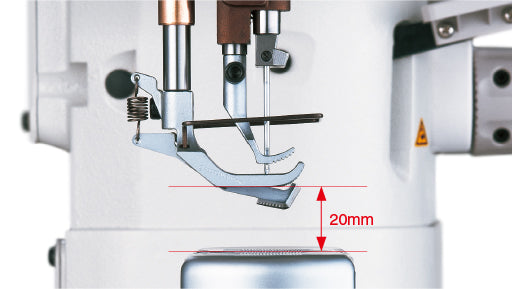

• Heavy-Goods Clearances
  Presser-foot lift 10 mm by hand and up to 20 mm by auto. Dial-adjustable alternating vertical movement 1–9 mm to step cleanly over joins and control foot climb.

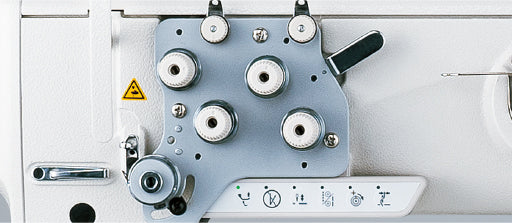

• On-Head Multi-Function Switch
  One-touch reverse, alternating-lift changeover, and stitch-length changeover on the head for faster section-to-section transitions.


Included in the Package

How JUKI PLC-2710NS-70BB Improves Your Workflow

• Stable Quality at Heavy Gauges
  Factory dual needle-thread tension lets you run low-count (thick) threads under higher tension with consistent results.

• Quicker Job Changeovers
  A two-pitch stitch-length changeover and an on-head multi-function switch enable one-touch adjustments without leaving the seam.

• Cleaner Running, Less Downtime
  The new lubrication system reliably feeds oil at low speeds and helps produce beautiful seams.

• Material-Matched Feeding
  Adjustable cam eccentricity plus an upper/lower feed-ratio adjustment let you tune the feed to the fabric/thread set and suppress slippage.

• Shorter Cycles, Higher Throughput
  Integrated direct drive motor gives instant torque and precise stop/starts on heavy stacks, while the automatic trimmer removes manual snipping and tail cleanup, cutting handling time and improving seam appearance.

Who Benefits Most

✔ Automotive & Marine Interior Shops — seat panels, bolsters, armrests, trim with foam/laminate stacks.
✔ Upholstery & Furniture Manufacturers — sofas, chairs, padded components with complex shapes.
✔ Bags & Heavy Leather Goods — structured bags, cases, straps where topstitch quality is visible.
