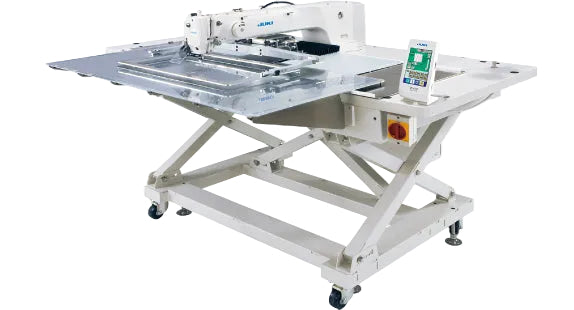

Juki AMS-224ENGS-1005-N, Computer-controlled Cycle Machine with Table & Servo Motor

Juki AMS-224EN Series

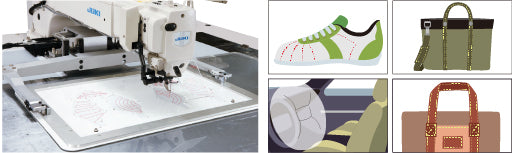

The AMS-224EN is designed to significantly enhance energy efficiency and productivity in sewing operations. This model incorporates advanced features and technology to deliver superior performance, making it a valuable addition to any production line.

• Substantial Power Savings:

  • Direct-Drive System: Utilizes a compact AC servomotor for efficient energy transmission.
  • Encoder Control System: Drives the stepping motor with minimal power based on material weight and stitch length, reducing power consumption by 30% during operation and 45% during standby compared to the AMS-224C model.

• High Productivity:

  • Maximum Sewing Speed: Achieves 2,500 stitches per minute, the highest in its class. Reaches maximum speed by the second stitch and maintains it until just before the end of sewing, then decelerates instantaneously.
  • Stepping-Motor Controlled Thread Trimming: Ensures fast and consistent thread trimming, reducing total cycle time.
  • Main-Shaft Direct-Drive System: Enhances machine responsiveness.

• Superior Sewing Quality:

  • Encoder-Controlled X-Y Drive Stepping Motor: Improves feed accuracy, reducing pattern deformation during high-speed or heavy-weight material sewing.
  • Semi-Dry Head: Minimizes oil use, protecting products from oil stains.

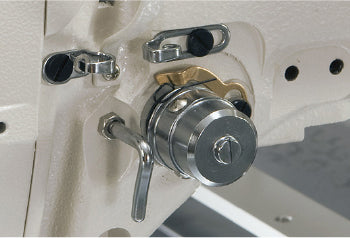

  • Active Tension: Allows for precise needle thread tension adjustments based on material thickness and sewing direction, enhancing seam quality and reproducibility.

• Programmable Intermediate Presser:

  • Adjustable Height: Prevents sewing troubles such as stitch skipping and thread breakage by clamping materials effectively.
  • Easy Height Adjustment: Maintains consistent seam quality even on multi-layered materials.

• User-Friendly Operation Panel:

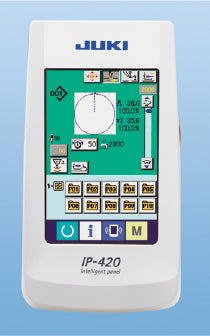

  • IP-420 Touch Panel: Features a large color LCD for easy data input and editing, displaying essential sewing information at a glance. Supports 14 languages and includes key-lock customization and simplified operation modes.
  • Enhanced Memory Storage: Can store up to 500,000 stitches and 999 patterns. Supports various media types via USB and card readers, accommodating up to 50,000,000 stitches per medium.

• Additional Features:

  • Hand Pulley: Allows easy adjustment of the needle bar height and needle entry point during data programming.
  • Feeding Frame Lift: Maximum lift of 30mm for easy setting of heavy-weight materials.
  • PK 2-Pedal Unit: Enables precise positioning of parts to be sewn with a mechanical valve pedal.
  • Hook Driving Shaft Pulley: Facilitates easy hook adjustment.

Specifications
