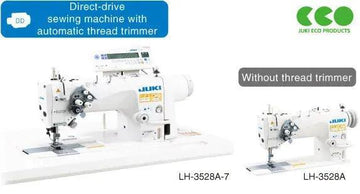

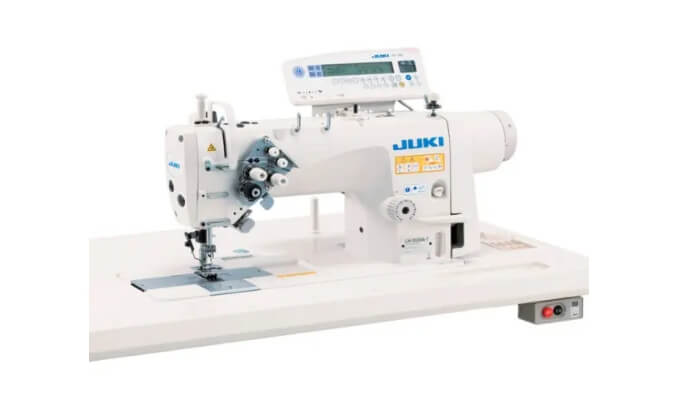

Juki LH3528AS(G)F7WBAK135/SC920A/CP18A, 2-needle Lockstitch Machine

The Juki LH-3528A-7 is a high-performance, 2-needle lockstitch machine designed for versatile applications, handling both light and heavy-weight fabrics with ease. It features a direct-drive mechanism for enhanced energy efficiency and powerful needle penetration. The semi-dry head prevents oil stains, and its advanced thread tension control ensures smooth, well-tensed seams, even when using thick threads. Equipped with an automatic thread trimmer and an adjustable micro-lifter, it offers precise fabric handling and efficient operation​.

Regular price $4,381.00
Sale price Our Price: $4,381.00 Regular price Market Price: $5,262.00
Unit price

Pay No Sales Tax Except in California

Build your perfect custom tables with lifetime warranty for all sewing machine brands.

Head only $4,381.00
Workstation with accessories (chose below)


Total Price:
  • Shipping and Guarantee
    100% Quality Control for custom sewing tables
  • Order today for the fastest delivery:Jan 19 - Jan 23

  • Shipping available to all U.S. states

Juki LH3528AS(G)F7WBAK135/SC920A/CP18A, 2-needle Lockstitch Machine

Juki LH3528AS(G)F7WBAK135/SC920A/CP18A 2-needle Lockstitch Machine

Regular price $4,381.00
Sale price Our Price: $4,381.00 Regular price Market Price: $5,262.00
Unit price

LH3528AS(G)F7WBAK135/SC920A/CP18A

How It Works

The Juki LH-3528A-7 operates with a direct-drive mechanism that enhances energy efficiency and needle penetration. It offers a semi-dry head to prevent oil stains and customizable thread tension control, ensuring smooth, well-tensed seams even on challenging fabrics. The machine’s micro-lifter allows precise handling of delicate materials by gently lifting the presser foot, while the automatic thread trimming system efficiently trims both the needle and bobbin threads, reducing manual effort. Additionally, the machine allows easy switching between needle feed and bottom feed, providing flexibility for various fabric types​.

CUSTOM WORKSTATION
ABOUT
FEATURES
SPECIFICATIONS
MANUALS & WARRANTY
FAQS

Build Your Perfect Workstation with PRIZZI

Any Sewing Machine, Any Specification
We specialize in crafting custom workstations tailored to your exact specifications. No matter the brand or model of your sewing machine, we can create a workstation that fits it perfectly.

Quality Seal of Approval
After passing our stringent inspections, every workstation receives a QC sticker, symbolizing our commitment to excellence.

Lifetime Warranty
Our confidence in our quality allows us to offer a lifetime warranty on all our workstations. Your investment is protected for life.

Specifications for Over 4,000 Machines
With an extensive database of machine specs across all brands, we're ready to build your custom workstation without delay.

1-2 Day Production Time
Our efficient processes enable us to craft and deliver your custom workstation within just 1-2 days.

Direct-Drive Mechanism for Enhanced Performance

The adoption of a direct-drive mechanism improves energy conservation, workability, and increases the needle's material-penetrating force.

Semi-Dry Head for Oil Stain Prevention

All models of the LH-3500A Series are now equipped with a semi-dry head, unique to JUKI, to eliminate oil staining from the frame (needle bar part).

Easily Changeable Feed Method

The oil tank has been relocated inside the sewing machine following a thorough review of the lubricating method. This redesign secures space under the bed surface, facilitating the changeover between the "needle feed" and "bottom feed" methods, as well as the adjustment of feed timing (re-placement of the timing belt).

Changeover Between Needle Feed and Bottom Feed

For processes requiring the prevention of puckering, such as sewing lightweight materials, the feed method can be easily switched to the bottom feed. This adjustment, along with a change of the gauge, prevents puckering and allows for sewing with lower thread tension compared to the needle feed method.

Variety of Models for Different Materials

A wide variety of models are available, allowing users to choose the best-suited machine for their sewing items, ranging from lightweight to heavyweight materials.

Production Support Function

The CP-18A and CP-180A operation panels are equipped with a production support function, consisting of three different functions (six different modes): output control, operation measuring, and bobbin counter functions. Each mode offers unique production support effects, and the appropriate function can be selected as needed. Parameter settings can be adjusted on the panel located on top of the sewing machine, reducing operator fatigue during setup changes.

Two Selectable New-Method Oiling Mechanisms

ECO-Oil Method (Circulation Type) The ECO-oil method filters the oil dropped from the hook and its surrounding sections into the under-cover to remove dirt and dust. This cleaned oil is then returned to the oil tank, saving effort on oiling and reducing oil consumption.

Clean Oil Method In the clean oil method, the oil dropped from the hook and its surrounding sections into the under-cover is not returned to the oil tank. Instead, only clean oil is continuously supplied to the hook, ensuring consistent lubrication with clean oil at all times.

Specifications

FAST SEWING PERFORMANCE
The Juki LH-3528A-7 delivers up to 3,000 stitches per minute, ensuring rapid and efficient production for both light- and heavy-weight fabrics.

PRECISION THREAD CONTROL
Equipped with advanced thread tension controllers, this machine provides smooth, well-tensed seams, reducing puckering and irregular stitches even with thick threads, ensuring consistent quality.

MATERIAL-FRIENDLY MICRO-LIFTER
The micro-lifter mechanism gently lifts the presser foot, reducing the load on shaggy or elastic fabrics, preserving the fabric’s texture and providing flawless stitching.

RELIABLE THREAD TRIMMING
The automatic thread trimming system efficiently trims both the needle and bobbin threads, even with heavy or thick threads, reducing manual work and improving productivity.

FLEXIBLE FEEDING SYSTEM
The needle feed and bottom feed can be easily switched, allowing you to adjust the feed method based on the material to prevent puckering and enhance seam quality​

Machine head: LH-3528A-7 (Semi-dry head, 2-needle lockstitch machine)
Max. sewing speed: 3,000 stitches per minute (sti/min)
Lift of the presser foot: Maximum 7mm by hand, 13mm by knee
Hook: Vertical-axis regular hook
Maximum stitch length: 5mm (4mm for foundation fabrics)
Needle: DP × 5 (#9 – #16 for light, medium-weight fabrics; #16 – #23 for jeans and heavy-weight fabrics)
Thread: Suitable for light, medium, and heavy-weight fabrics
Lubrication system: Semi-dry head with minute-quantity lubrication (Eco-oil method or Clean oil method)
Feed system: Changeover between needle feed and bottom feed
Power requirement / Power consumption: Standard industrial voltage settings
Oil crankcase: None, operates with a semi-dry lubrication system
Applications: Suitable for light-weight, medium-weight, jeans, and heavy-weight fabrics
Automatic thread trimming: Yes, included as standard
Automatic foot lift: Yes, included as standard
Organized split needle bar: Not provided
Weight: Machine head weight is approximately 61 kg (with packaging)
Oiling method: Eco-oil (circulation type) or Clean oil method
Tank capacity: 280cm³​

DOWNLOADS:

Juki LH-3528A-7 Instruction
