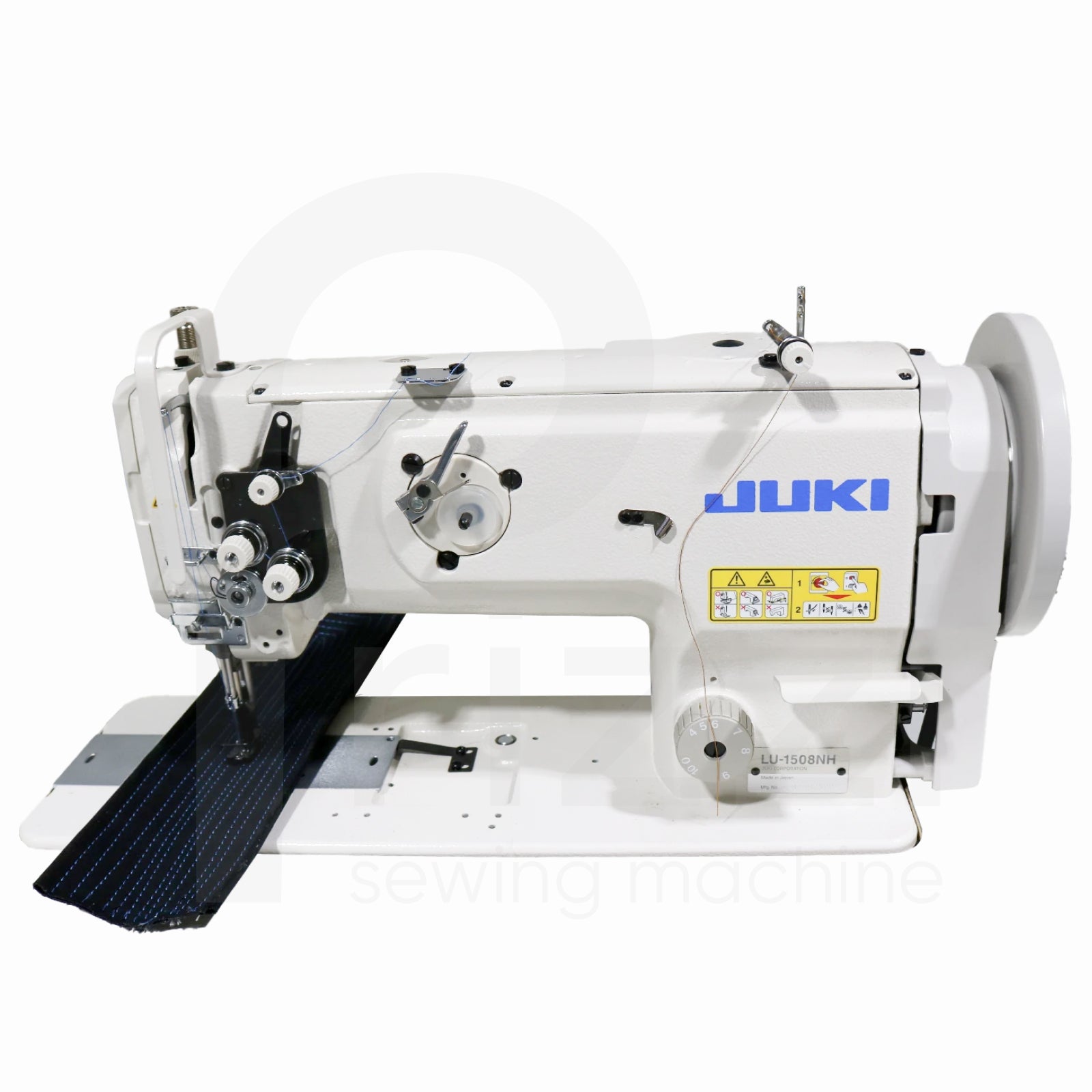

JUKI LU-1508NH Industrial Single Needle Unison-Feed (Walking-Foot) Lockstitch Machine for Extra Heavy-Weight Materials

Built for extra-heavy stacks – Rectangular feed + compound (walking-foot) feed prevents ply shift and stitch gathering on thick assemblies.

Long topstitches that hold – Up to 10 mm stitch length for decorative/structural seams on leather and heavy canvas.

Fewer bobbin changes – Vertical-axis double-capacity hook extends run time with heavy thread.

Extra penetration & control – 38 mm needle-bar stroke, 16 mm knee lift, and dial-set 2.5–6.5 mm alternating lift handle step-ups and thick transitions with confidence.

Operator leverage – Extra-large Ø175 mm handwheel for precise control at starts/stops and corners.

2,000 sti/min on heavy goods keeps takt times tight without sacrificing stitch quality.

Uniform pitch at step-ups thanks to the rectangular feed—less rework on belts, straps, and seat panels.

Stitch-length dial – Change stitch length in seconds for faster changeovers.

Clear needle work area – Easier to track topstitch lines, fewer defects.

Front bobbin winder & full-open top cover – Keep operators in flow; faster adjustments/maintenance without tilting the head.

Built-in knee lifter (bed-integrated) – Lighter knee pressure reduces fatigue.

Safety clutch (push-button reset) – Protects the hook in jams and minimizes downtime.

Machine Type: 1-needle, unison (walking-foot) lockstitch
Hook: Vertical-axis double-capacity rotary hook
Application: Extra heavy-weight materials (leather, canvas, vinyl, coated fabrics)
Max Sewing Speed: 2,000 stitches/min
Max Stitch Length: 10 mm (forward/reverse)
Needle-Bar Stroke: 38 mm
Presser Foot Lift: 9 mm by hand / 16 mm by knee
Alternating Foot Lift (Dial): 2.5–6.5 mm
Feed Motion: Rectangular feed (prevents stitch gathering at step-ups)
Needle System (typical): 190R or 135×17; common range Nm125–Nm200
Thread Range (typical): approx. #20–#1 (B69–B207)
Handwheel: Ø175 mm steel
Operator Aids: Safety clutch with push-button reset; front bobbin winder; full-open top cover; stitch-length dial

DOWNLOADS:

Juki LU-1508N Instruction
