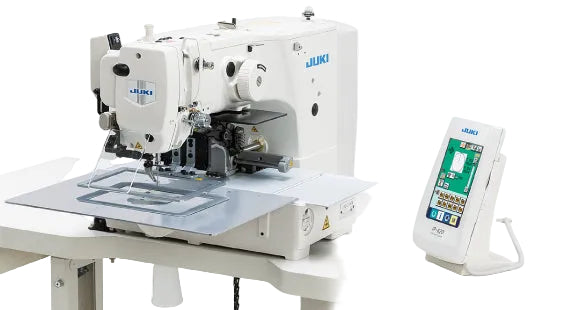

JUKI AMS-210EN SERIES

The digital sewing system introduces a value-added production process through computerization, benefiting all individuals involved in manufacturing. This system integrates advanced technology to enhance efficiency, precision, and overall productivity.

KEY FEATURES AND BENEFITS

Shortened Cycle Time

• Industry-Leading Speed: Achieves a maximum sewing speed of 2,800 stitches per minute (sti/min). The machine reaches this speed by the second stitch and maintains it until the end of sewing, significantly reducing cycle time.
• Stepping-Motor Controlled Thread Trimming: Ensures speedy and consistent thread trimming performance.
• Main-Shaft Direct-Drive System: Enhances machine responsiveness.

Reduced Power Consumption

• Economically-Efficient Design: The AMS Series is designed to reduce power consumption by 30% compared to conventional models. This is achieved through a compact AC servomotor for driving the main shaft and an encoder-control system for the X-Y drive mechanism.

Increased Sewing Speed per Stitch Length

• Optimal Speed: The AMS-210EN can sew at 2,800 sti/min with a stitching pitch of up to 4mm. Even for larger pitches, sewing speeds are increased by 90% for the AMS-210EN and 60% for the AMS-221EN compared to conventional models, reducing cycle time.

Improved Seam Quality

• Enhanced Feed Accuracy: The encoder-controlled X-Y drive stepping motor improves feed accuracy, reducing pattern deformation when sewing at high speeds or with heavy materials.
• Semi-Dry Head: Utilizes advanced dry technology to prevent oil stains on products.

Programmable Intermediate Presser

• Adjustable Height: The intermediate presser height can be adjusted steplessly during sewing to accommodate multi-layered materials, preventing stitch skipping and thread breakage.

Two Types of Feeding Frames

• Monolithic and Separately-Driven: The separately-driven feeding frame allows for easier placement of sewing materials, with adjustable lift and speed for each frame part.

Double-Stepped Stroke Feeding Frame

• Convenient Positioning: Allows for fine positioning of materials with adjustable stopping height.

Active Tension

• Precision Control: Enables pinpoint changes in needle thread tension during sewing, adjustable through the operation panel. This reduces setup time for process changes and supports a broader range of sewing conditions.

Versatility

• Wide Range of Applications: Suitable for free pattern stitching, parts sewing, reinforcement stitching, and more. Applications include attaching labels, emblems, Velcro, and various shape-tacking and bartacking.

Advanced Operation Panel (IP-420)

• User-Friendly Interface: Features a large liquid crystal touch panel for ease of operation and increased efficiency. Displays sewing data, allows for data input/editing, and includes 14 different display languages.
• Key-Lock Customization: Allows for hiding items that should not be handled by operators.
• Simplified Operation Mode: Increases ease of use and reduces operator fatigue.

Enhanced Memory Storage

• USB-Ready: The machine's main body supports various media types, with a memory storage capacity of 500,000 stitches and 999 patterns (max. 50,000 stitches per pattern). Data can be input/output through USB, CompactFlash, and other media.

By incorporating these advanced features, the digital sewing system, particularly the AMS-221F model, enhances production capabilities, delivering precise and high-quality results with every use.

AMS-210ENZL1510RZC/X90022/HC/BC

SPECIFICATIONS
