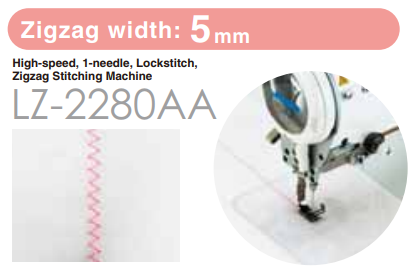

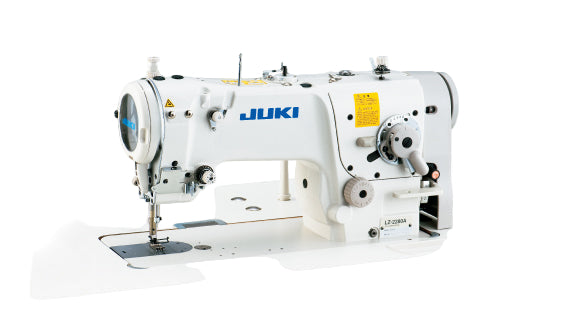

JUKI LZ-2280AA Industrial Single Needle High-Speed Lockstitch Zigzag Machine with Adjustable Feed Mechanism (Standard 5 mm Zigzag Width)

JUKI LZ-2280AA — High-Speed 1-Needle Lockstitch Zigzag Machine for Garment Sewing with Adjustable Feed Mechanism (Standard 5 mm Zigzag Width)

What Sets the JUKI LZ-2280AA Apart

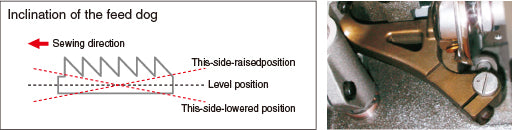

• Fine-Adjustable Feeding for Overlaps and Layered Fabrics
  The feed dog’s height and inclination can be finely tuned across a widened adjustment range, improving control on overlapped seams and reducing feeding irregularities when transitioning between fabric thicknesses.



• Optimized Low-Tension Sewing for Soft, Flexible Seams
  The improved thread path, hook and needle locus, and timing reduce double-catching and skipped stitches under low tension, enabling softer seam finishes desirable in garment production.



• Fully Automatic Lubrication for Continuous Operation
  A redesigned oil-feeding route ensures consistent lubrication of the hook, supporting reliability and durability during long production runs.

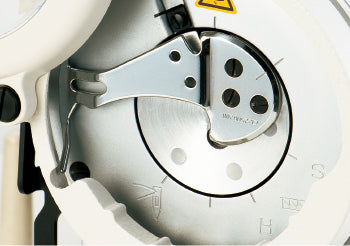

• Built-In Timing Markers for Precise Needle and Hook Alignment
  The built-in guides let you adjust the timing between needle, hook, and feed motion quickly and precisely. This helps maintain clean zigzag formation and makes troubleshooting or switching between fabrics more efficient.



• Easy Lever and Dial Adjustments for Zigzag Width, Needle Throw, and Stitch Baseline
  Key zigzag parameters — including needle position, throw width, and baseline — can be set quickly using an intuitive lever system, while a dedicated dial allows precise control of feed amount and condensation stitches.


How It Improves Your Workflow

• Steadier Zigzag Performance
  Low-tension stability keeps the needle and hook interaction steady, so zigzag stitches form cleanly even on tricky materials. Operators spend less time re-adjusting tension or correcting uneven seams.


• Better Control on Overlaps and Layers
  Fine feed adjustment improves how the machine moves fabric at thickness changes, preventing hesitation or sudden pulling at transitions. This reduces skipped stitches and lowers the amount of rework on critical seams.


• Higher Output at Production Speed
  The head maintains stitch accuracy at up to 5,000 stitches/minute, allowing operators to sew long runs without slowing down to maintain quality. This increases output while keeping seam appearance consistent across batches.


• Faster Setup and Fewer Interruptions
  Built-in timing guides help align hook, needle, and feed motion quickly when changing materials. Automatic lubrication keeps the hook running smoothly, reducing unplanned stops during long shifts.

Who Benefits Most

✔ Sportswear, Swimwear & Performance Apparel Facilities – leggings, performance tops, swimsuits, dancewear, stretch panels, elastic seams

✔ Lingerie & Soft Knit Producers – delicate knits, lightweight synthetics, soft zigzag finishes, flexible reinforcement

✔ Knitwear & Children’s Clothing Workshops – T-shirts and jerseys, baby clothing with soft seams

✔ Uniform & Workwear Manufacturers – reinforced zigzag points on pockets, plackets, and stress-prone areas
