Juki DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A, 1-Needle Lockstitch Machine

The Juki DLU-5490N-7 is a high-speed, automatic sewing machine designed for consistent, top-quality stitching. Its synchronized walking foot ensures even fabric feed, while the large presser foot lift makes handling thick materials effortless. Equipped with automatic thread trimming, it increases efficiency and productivity. The SC-920C control box and M92 servomotor incorporate energy-saving features, reducing power consumption by 25% during standby. Two operation panels, CP-18A and CP-180A, provide production support functions, optimizing workflow for maximum performance. Ideal for medium-weight fabrics, the DLU-5490N-7 is perfect for professional sewing environments.

Regular price $6,601.00
Sale price Our Price: $6,601.00 Regular price Market Price: $8,056.00
Unit price

Pay No Sales Tax Except in California

Build your perfect custom tables with lifetime warranty for all sewing machine brands.

Head only $674.00
Workstation with accessories $984.50 (chose below)


Total Price: $674.00
  • Shipping and Guarantee
    100% Quality Control for custom sewing tables
  • Order today for the fastest delivery:Dec 26 - Dec 30

  • Shipping available to all U.S. states

Juki DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A, 1-Needle Lockstitch Machine

Juki DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A 1-Needle Lockstitch Machine

Regular price $6,601.00
Sale price Our Price: $6,601.00 Regular price Market Price: $8,056.00
Unit price

DLU-5490NBB-7WB-PF6IM92/SC920C/CP18A

How It Works

The Juki DLU-5490N-7 delivers consistent, high-quality stitches with minimal effort. Its synchronized feed ensures even fabric handling, and the large presser foot lift handles thick materials easily. The machine features automatic thread trimming and energy-saving technology with the SC-920C control box and M92 servomotor, reducing power use by 25%. Two operation panels, CP-18A and CP-180A, offer production support for efficient workflow.

CUSTOM WORKSTATION
ABOUT
FEATURES
SPECIFICATIONS
MANUALS & WARRANTY
FAQS

Build Your Perfect Workstation with PRIZZI

Any Sewing Machine, Any Specification
We specialize in crafting custom workstations tailored to your exact specifications. No matter the brand or model of your sewing machine, we can create a workstation that fits it perfectly.

Quality Seal of Approval
After passing our stringent inspections, every workstation receives a QC sticker, symbolizing our commitment to excellence.

Lifetime Warranty
Our confidence in our quality allows us to offer a lifetime warranty on all our workstations. Your investment is protected for life.

Specifications for Over 4,000 Machines
With an extensive database of machine specs across all brands, we're ready to build your custom workstation without delay.

1-2 Day Production Time
Our efficient processes enable us to craft and deliver your custom workstation within just 1-2 days.

1-needle, Bottom and Variable Top-feed Lockstitch Machine.

Walking Foot

The walking foot provides stable feed at all times, assuring high quality. It also eliminates the need for proficiency.

The large lift of the presser foot enables the operator to easily set or remove materials and sew overlapping sections without any difficulty.

Double Feed

The synchronization of top feed motion with bottom feed motion in sewing machines plays a crucial role in achieving uniformity and quality in stitching, as well as in gathering fabric.

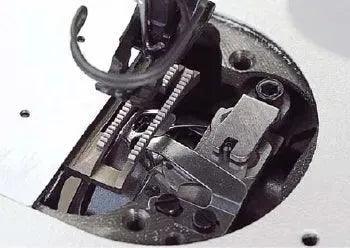

Trimmer

The machine comes with a thread trimming mechanism that performs speedy and sure thread trimming to achieve highly efficient sewing work.

2 Control Panels

Two different operation panels, the CP-18A and CP-180A are applicable to the DLU-5490N-7.

Specifications





HIGH-SPEED STITCHING
The Juki DLU-5490N-7 delivers up to 4,500 stitches per minute, ensuring fast and efficient sewing for high-volume production.

PRECISION FABRIC FEEDING
Synchronized top and bottom feed provides even fabric handling, ensuring uniform, high-quality stitches with every operation.

HANDLING THICK MATERIALS
The large presser foot lift allows easy sewing of thick or overlapping materials, ideal for medium-weight fabrics.

AUTOMATIC THREAD TRIMMING
Equipped with a reliable thread trimming mechanism, the machine streamlines workflow and increases productivity.

ENERGY-SAVING TECHNOLOGY
The SC-920C control box with M92 servomotor reduces power consumption by 25% during standby, enhancing energy efficiency.

Machine head: DLU-5490N-7 (Automatic-lubricating full-rotary hook)
Max. sewing speed: 4,500 stitches per minute (sti/min)
Max. stitch length: 5 mm
Max. top-feed amount: 8 mm
Needle bar stroke: 30.7 mm
Lift of the presser foot: By hand: 5.5 mm, By knee: 13 mm
Needle (at the time of delivery): DB×1 (#14), For JE: 134 (Nm90)
Hook: Automatic-lubricating full-rotary hook
Lubrication: Automatic
Lubricating oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Automatic reverse feed function: Provided as standard
Power requirement / Power consumption: Single-phase 100~120V, 200~240V / 650VA, 3-phase 200~240V / 650VA
Total weight: 83 kg

DOWNLOADS:

Juki DLU-5490N-7 Instruction

U.S.WARRANTIES:

Lifetime Warranty: All of our custom sewing tables are backed by a lifetime warranty. We stand by the quality and durability of our tables, ensuring they meet your exact needs for the long haul.

Sewing Machines: Our sewing machines come with the standard manufacturer's warranties. For specific details, please refer to the warranty information provided by the manufacturer of your machine.

DISCLAIMER: Due to the nature of shipping heavy and industrial equipment, minor marring or scratches may occur during transit. These cosmetic imperfections do not impact the functionality or performance of the equipment.
