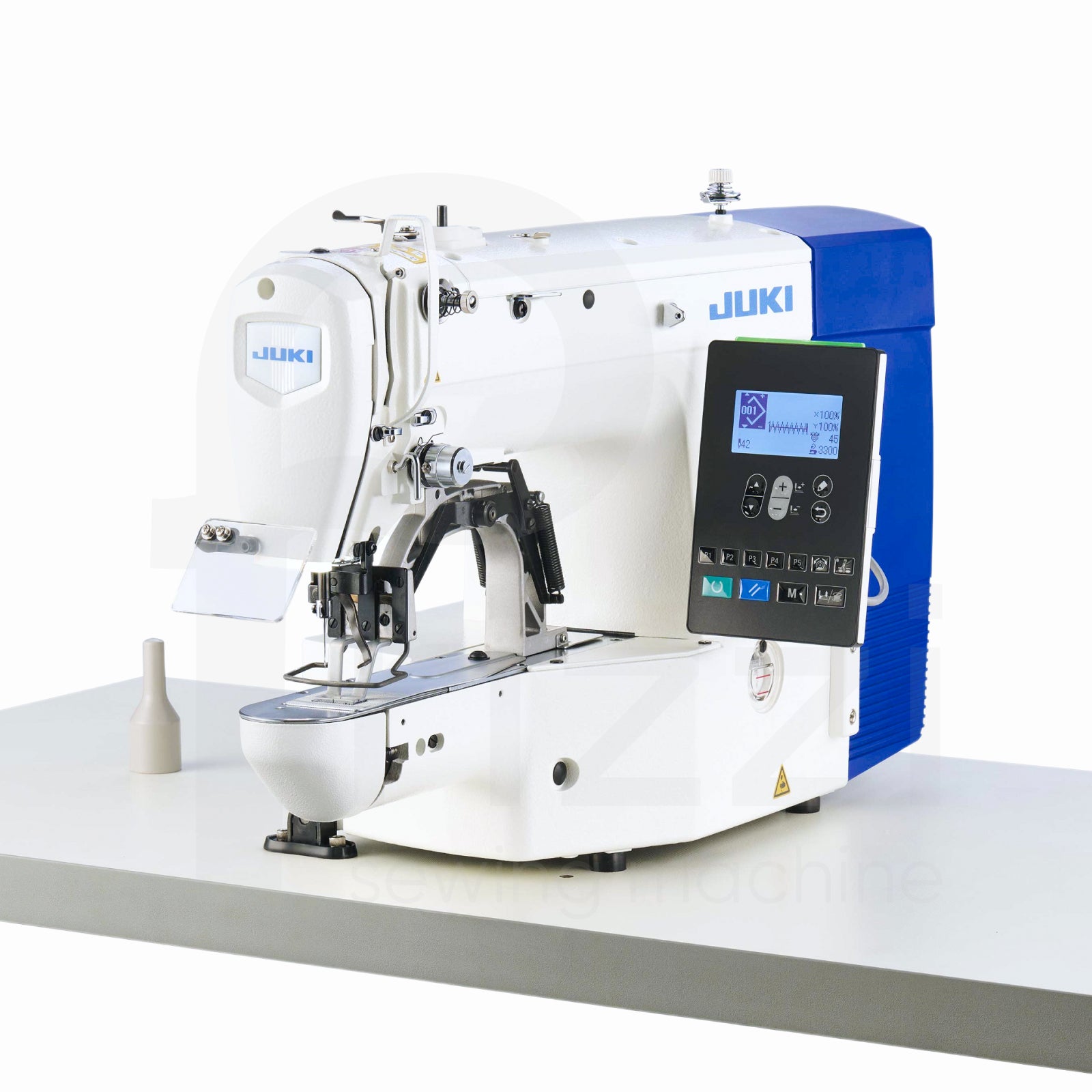

JUKI LK-1900C-SS-000D JP HMCBP Industrial Computer-Controlled, High-Speed, Bartacking Sewing Machine for Medium-Weight Materials

Its key advantage: 3,300 sti/min + Active (electronic) thread tension + dry-head—so you get fast, clean, repeatable bar-tacks with no oil stains. With 100 built-in patterns and USB/NFC data transfer, changeovers are quick and consistent across lines.

Learn more...
Regular price $5,781.00
Sale price Our Price: $5,781.00 Regular price Market Price: $7,708.00
Unit price

Build your perfect custom sewing tables with lifetime warranty for all sewing machine brands.

Head only $5,781.00
Workstation with accessories (choose below).
Price Includes 10% OFF Fall Sale.
Prices will Increase in September due to new U.S. tariffs.


Total Price:

Pay No Sales Tax Except in California

  • Order today for the fastest delivery:Sep 10 - Sep 14

  • Shipping available to all U.S. states

100% Guaranteed Safe & Secure Checkout

Compare Ask a question

Ask a Question

* Required fields

Size guide
JUKI LK-1900C-SS-000D JP HMCBP Industrial Computer-Controlled, High-Speed, Bartacking Sewing Machine for Medium-Weight Materials

JUKI LK-1900C-SS-000D JP HMCBP Industrial Computer-Controlled, High-Speed Bartacking Sewing Machine for Medium-Weight Materials

Regular price $5,781.00
Sale price Our Price: $5,781.00 Regular price Market Price: $7,708.00
Unit price

JUKI LK-1900CSS000D

How It Works

ABOUT THIS PRODUCT
ABOUT PRIZZI TABLES
MACHINE FEATURES
SPECIFICATIONS
MANUALS & WARRANTY
FAQS

JUKI LK-1900C-SS — Computer-Controlled High-Speed Bartacking Machine (for Medium-Weight Materials)

Built for repeatable reinforcement stitches at scale, the LK-1900C-SS combines JUKI’s direct-drive head, active (electronic) thread tension, and an integrated control box/panel to deliver fast, clean bar-tacks on pocket ends, waistbands, belt points, label corners and more. It reaches a world-class 3,300 sti/min, includes 100 standard patterns, and stores up to 999 patterns / 500,000 stitches for true production flexibility.


What sets the LK-1900C-SS apart?

  • 3,300 sti/min class speed – higher-rigidity drive and revised oiling help the C-series achieve 3,300 stitches/min for shorter cycle times.
  • Integrated control box + upright LCD panel on the head keeps controls within sight and frees table space; 100 patterns standard, up to 999 in memory (500k stitches).
  • Active Tension (electronic needle-thread tension) lets you set, save, and recall tensions per material, speed, or seam section for stable quality.
  • Dry-head frame (no oil at needle bar/take-up) with minute-quantity hook lubrication prevents oil stains on garments.
  • Built-in LED marking light aids precise tack positioning; irradiation width is adjustable.
  • Auto-lifter (stepping motor) reduces operator fatigue; work-clamp lift 14 mm (std) / up to 17 mm
  • Lower noise & power draw – approx. 40% noise and 26% power reduction vs. the previous model.
  • USB data & optional NFC for quick copying of settings/patterns between machines and easy software updates.


How does this machine improve your production workflow?

  • Faster cycles, less rework – 3,300 sti/min plus fast thread-trim sequencing shorten total cycle time while the LED guide and active tension keep tack placement and knot quality consistent.
  • Clean, stain-free results – dry-head + controlled hook oiling protect light colors and formalwear.
  • Digital repeatability – save per-style tensions and patterns; recall them instantly to minimize setup time when changing products.
  • Operator comfort – quieter, lower-vibration direct-drive head with auto-lifter supports long shifts.
  • Smart factory ready – USB standard; add NFC to move settings wirelessly between machines.

Who benefits most?

Menswear & uniforms – pocket lips, plackets, label corners
Trousers & chinos – reinforcement at fly and belt areas
Shirts, blouses, light jackets – consistent bar-tacks on medium fabrics
Small-goods/light bags – tidy reinforcement on medium-weight materials

Build Your Perfect Workstation with PRIZZI

Any Sewing Machine, Any Specification
We specialize in crafting custom workstations tailored to your exact specifications. No matter the brand or model of your sewing machine, we can create a workstation that fits it perfectly.

Quality Seal of Approval
After passing our stringent inspections, every workstation receives a QC sticker, symbolizing our commitment to excellence.

Lifetime Warranty
Our confidence in our quality allows us to offer a lifetime warranty on all our workstations. Your investment is protected for life.

Specifications for Over 4,000 Machines
With an extensive database of machine specs across all brands, we're ready to build your custom workstation without delay.

1-2 Day Production Time
Our efficient processes enable us to craft and deliver your custom workstation within just 1-2 days.

3,300 sti/min class speed – higher-rigidity drive and revised oiling help the C-series achieve 3,300 stitches/min for shorter cycle times.

Integrated control box + upright LCD panel on the head keeps controls within sight and frees table space; 100 patterns standard, up to 999 in memory (500k stitches).

Active Tension (electronic needle-thread tension) lets you set, save, and recall tensions per material, speed, or seam section for stable quality.

Dry-head frame (no oil at needle bar/take-up) with minute-quantity hook lubrication prevents oil stains on garments.

Built-in LED marking light aids precise tack positioning; irradiation width is adjustable.

Auto-lifter (stepping motor) reduces operator fatigue; work-clamp lift 14 mm (std) / up to 17 mm

Lower noise & power draw – approx. 40% noise and 26% power reduction vs. the previous model.

USB data & optional NFC for quick copying of settings/patterns between machines and easy software updates.

Application: Medium-weight materials (SS subclass).
Max sewing speed: 3,300 sti/min.
Sewing area: 40 mm (W) × 30 mm (L).
Standard patterns: 100 built-in; Memory: up to 999 patterns / 500,000 stitches total.
Work-clamp lift: 14 mm standard, up to 17 mm via auto-lifter settings.
Thread control: Active Tension (electronic).
Positioning aid: Built-in LED marking light (adjustable width).
Drive: Direct-drive AC servo motor (no belt) integrated with head.
Lubrication: Dry-head frame; minute-quantity hook lubrication from tank.
Data I/O: USB port standard; NFC terminal optional.
Power: Single-phase 200–240 V (options vary by region).
Noise/Power vs. predecessor: approx. –40% noise, –26% power.
Machine weight (head with control box & motor): ~58.6 kg.

Looking for heavy-material bar-tacks, shorter thread remaining, or special eyelet/belt-loop models? The LK-1900C family also includes H (heavy), W (1.8× hook), B (bird’s-nest prevention/short-thread), and dedicated LK-1901C/1902C variants.

DOWNLOADS:

Juki LK-1900C Series Instruction

U.S.WARRANTIES:

Lifetime Warranty: All of our custom sewing tables are backed by a lifetime warranty. We stand by the quality and durability of our tables, ensuring they meet your exact needs for the long haul.

Sewing Machines: Our sewing machines come with the standard manufacturer's warranties. For specific details, please refer to the warranty information provided by the manufacturer of your machine.

DISCLAIMER: Due to the nature of shipping heavy and industrial equipment, minor marring or scratches may occur during transit. These cosmetic imperfections do not impact the functionality or performance of the equipment.

1. Are PRIZZI’s sewing tables compatible with all machine brands?

Yes, our custom-built tables are compatible with most industrial sewing machines, including KANSAI, PEGASUS, and MITSUBISHI. We tailor each table to fit specific machine models, ensuring perfect integration for your operation. Simply provide us with your machine’s specifications.

2. How durable are PRIZZI tables?

Our tables are built with premium materials and undergo a rigorous quality control process. Designed for heavy-duty, industrial use, they provide stability and precision, ensuring longevity even in high-demand environments.

3. Can I customize tables for my specific needs?

Absolutely! We offer a variety of customization options, from table dimensions to additional features like vibration dampening or specialized work surfaces. Let us know your requirements, and we’ll design a table that fits perfectly into your workflow.

4. How quickly can I expect my order?

We pride ourselves on fast, reliable shipping. Most standard orders ship within 5-7 business days. For custom designs, delivery timelines vary based on complexity, but we always aim for efficient turnarounds.

5. What support do I get after purchasing?

We offer a lifetime warranty on all tables, ensuring your investment is protected.

6. How do I place a bulk order?

For bulk orders, simply contact our sales team. We offer tailored pricing, custom design consultations, and expedited shipping to ensure your business runs smoothly without delay.

Assembled Workstations for Our Clients

Don’t waste 3–5 hours figuring out bolts, tools, and instructions. With Prizzi’s professional assembly service, your workstation arrives fully set up and ready for production.
