Automatic Fabric Spreading Machine Serkon MT1 Master

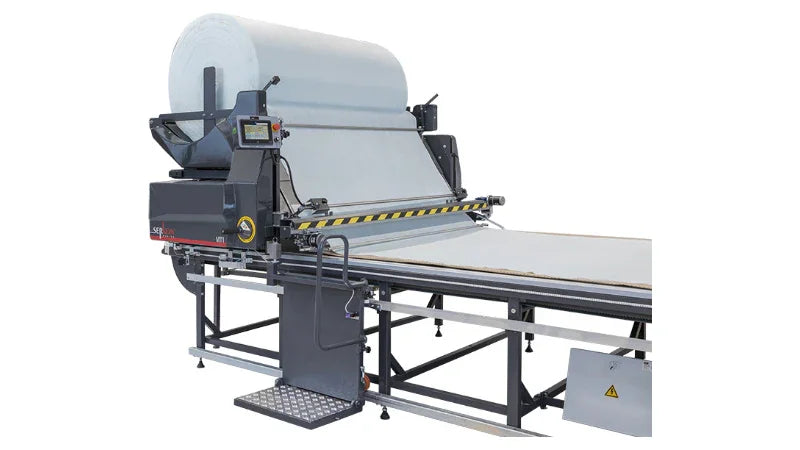

Serkon MT1 Master — Fully Automatic Fabric Spreading Machine with 440 lbs Max Roll Weight

The Serkon MT1 Master is configured for cutting rooms running sustained, high-volume spreading operations across woven, knit, elastic, and tubular knit materials. Fabric rolls up to 440 lbs (200 kg) load and unload via electric cradle tilt, reducing the physical effort of handling large industrial rolls. Four-wheel drive keeps the machine tracking accurately across the full table length regardless of fabric weight or ply count. Tension-free spreading and automatic edge alignment ensure every layer is placed correctly — at up to 100 meters per minute, without the inconsistency that manual layering introduces at scale. The operator has full visibility and control over the spread — machine position, speed, tension, and fabric feed all managed through an integrated control system that stores up to 50 setup files for fast recall on repeat orders. The result is a spreading operation that runs at the pace and precision a high-volume cutting room requires.

What Sets the Serkon MT1 Master Apart?

• Electric Cradle Tilt — Easier Loading of Heavy Rolls

The cradle tilts automatically for roll loading and unloading, significantly reducing the physical effort of positioning large industrial fabric rolls — up to 440 lbs (200 kg) in weight and 650 mm in diameter.

• Four-Wheel Drive — Accurate Tracking Across the Full Table

All four wheels of the machine are driven, maintaining accurate and stable movement along the table regardless of roll weight, ply count, or table length. On long markers and high-ply stacks, consistent machine travel translates directly into consistent lay quality.

• Cradle Feed System — Distortion-Free Spreading Across All Material Types

The cradle feed system with belt feeding delivers fabric to the table without tension — woven fabrics, knits, denim, elastic and tubular knit materials in roll or flat-folded form all spread without distortion. A seamless cradle feed belt keeps the fabric edge from slipping underneath, maintaining clean feeding throughout the run.

• Automatic Edge Alignment — Edge Accuracy Across the Full Stack

The electronic edge control system monitors and corrects fabric edge position continuously, responding to variable speed throughout the spread. Layer after layer lands in register — edge drift and the cutting waste it causes are removed from the process.

• Dynamic Tension Control and Adjustable Spreading Speed

The intelligent fabric feeding system measures material tension dynamically during spreading and adjusts feeding in response, giving the operator direct control over how the material is handled across the full run. Spreading speed is independently adjustable for forward and backward travel, with programmable acceleration and deceleration at the extreme table positions for smooth transitions at each end of the marker.

• Spreading Configuration Versatility — Standard and Zigzag Modes

Standard spreading with transversal cutting and zigzag spreading with front and end catchers are both available. The machine inverts between face-up and face-down spreading, giving the cutting room full control over ply orientation for any fabric or cutting plan. The Serkon MT1 Master is supplied as standard with an automatic end cutter and movable front catcher. Zigzag equipment, rear catcher, flat-fold attachment and tubular unit are available as optional attachments.

• Automatic Transversal Cutting Unit — Accurate Cut on Every Ply

An automatic rotary blade cutting unit is included as standard, with automatic adjustment to the current spread height as layers accumulate.

• Centralized Control and Fast Setup via Touchscreen

The 5.7" LG touchscreen gives operators direct control over all key spreading parameters from a simplified graphical interface designed for any experience level. Up to 50 fabric setup files can be stored and recalled for repeat jobs, with password protection keeping settings locked to authorized personnel.

• Lay Parameters Programmed and Stored — Length, Allowance, and Fault Management

Ply count, spreading length, end allowance, speed, tension settings, and zigzag or one-way selection are all configurable and stored as part of the fabric profile. When a defect appears on the roll, programmable shifting points allow the operator to cut around it and continue the spread without restarting the cycle.

• Encoder Position Tracking — Machine Location Known at All Times

An encoder continuously reports the machine's current position on the table to the control panel. The operator always knows exactly where the spreader is on the marker — critical on long tables and multi-section lays.

• Movable Operator Platform — Full-Run Visibility and Control

The operator platform travels the full length of the table alongside the machine, keeping the operator positioned at the spread point throughout the run.

• Automatic Self-Test — Machine Status Confirmed at Every Startup

The machine runs an automatic self-test on each startup or on operator request, checking the state of all systems before the spread begins. Issues are identified before production starts, not during it.

• Built-In Safety System — Emergency Stops and Obstacle Detection

Two safety photocells monitor the front and rear of the machine, stopping it automatically if a person or obstacle enters either zone. Quick-Stop emergency switches on both sides of the machine provide immediate manual shutdown.

Note:

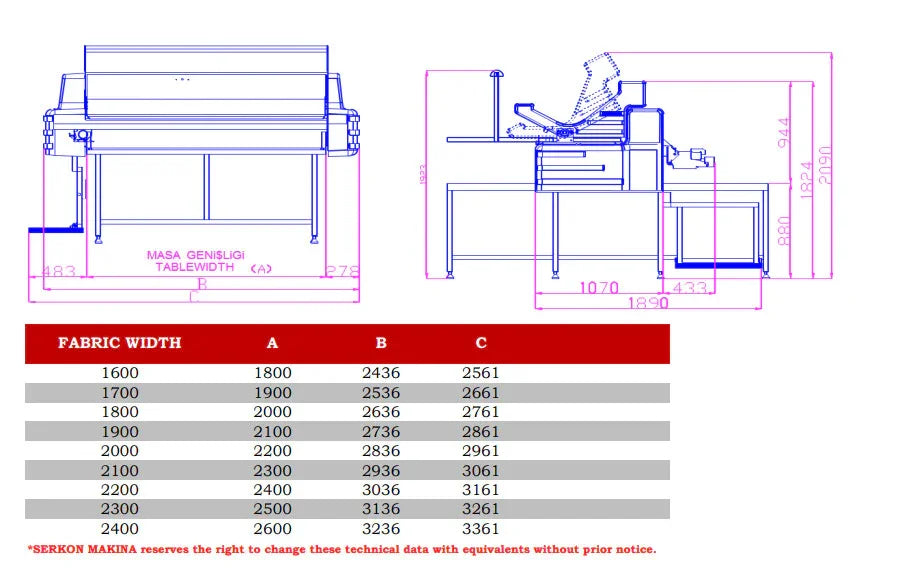

The machine and table widths specified in this card are up to 220 cm.

For custom widths exceeding 220 cm, additional charges apply as follows:

• 221–260 cm: +20%
• 261–300 cm: +30%
• 301–360 cm: +40%

Custom dimensions are available upon request and subject to these surcharges.

How the Serkon MT1 Master Improves Your Workflow

• Heavy Roll Handling Without Additional Labor

Electric cradle tilt makes roll transitions faster and less physically demanding — the time between the end of one roll and the start of the next stays short regardless of roll size. A 440 lbs (200 kg) roll capacity gives the cutting room greater flexibility.

• Lay Accuracy Maintained Across Long Markers and High Ply Counts

Four-wheel drive, automatic edge alignment and encoder position tracking work together to keep the lay to specification as ply count and marker length increase. What the cutting team receives is a correctly aligned, accurately measured lay.

• Full Spread Control From One Position

The operator manages the entire spread — machine movement, fabric feed, speed, tension — from a single point on the platform. The multi-function throttle and the touchscreen eliminate the need to leave the machine.

• Production Visibility and Machine Reliability

The automatic self-test confirms system status before every run — issues surface before production starts, not during it. Fabric usage is tracked and reported automatically, giving the cutting room manager the data to measure material utilization on every order and identify where fabric is being lost.

Who Benefits Most

✓Mid-to-large apparel manufacturers — operations running high-volume, long-marker cutting programs where roll capacity, machine stability, and sustained output rate are the primary requirements

✓Operations running mixed fabric programs — cutting rooms handling woven, knit, elastic, and tubular materials across different orders on the same machine

✓Facilities ready to scale up cutting room capacity — operations where current spreading equipment no longer keeps pace with production volume and a higher-capacity machine is the logical next step
