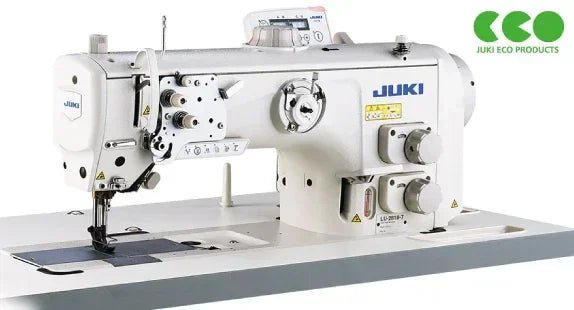

JUKI LU-2810NSS Single Needle Unison-Feed Industrial Lockstitch Machine for Heavy-Weight Materials Gauge Standard

Unison Feed Mechanism (Top + Bottom + Needle Feed)
Synchronizes the movement of the needle, presser foot, and feed dog to ensure smooth, even feeding of heavy or layered materials. This prevents fabric slippage and keeps stitch length uniform across varying material thicknesses — ideal for precise, high-quality seams.

Large Vertical-Axis Hook (2.0× Capacity)
Equipped with an oversized hook that holds twice as much thread as standard models, allowing for longer uninterrupted sewing and fewer bobbin changes — perfect for thick materials and long seams.

Semi-Dry Head Lubrication System
Delivers oil precisely to necessary internal parts, minimizing the risk of oil stains and fabric contamination while maintaining clean operation and extending component lifespan.

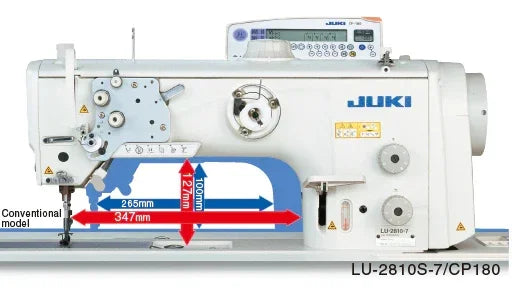

Extra-High Presser Foot Lift (Up to 20 mm)
Provides generous clearance to easily handle bulky, padded, or multi-layered materials such as leather, canvas, and upholstery fabrics — ensuring effortless material positioning and smooth transitions.

Adjustable Alternating Foot Height (1–9 mm)
Features a convenient dial for fine-tuning the alternating vertical movement of the walking and presser feet, allowing optimal feeding performance and stitch balance for materials of varying thicknesses.

Feed Cam Eccentricity Adjustment
Enables precise fine-tuning of the feeding motion to accommodate a wide range of materials — enhancing seam quality and reducing the need for frequent mechanical adjustments when switching between fabrics.

High-Torque Direct-Drive Motor
Provides powerful needle penetration and smooth acceleration while significantly reducing vibration, noise, and energy consumption — improving sewing precision and operator comfort during extended operation.

Automatic Lubrication System (Tank Type)
Ensures a consistent oil supply to critical moving parts, promoting stable performance, smooth motion, and reduced maintenance requirements for long-term use.

High-Speed Performance (Up to 3,000 sti/min)
Maintains perfectly balanced stitches even at high speeds, boosting productivity and efficiency in large-scale production of heavy-duty or multi-layered items.

Application: Medium to heavy-weight materials
Max. Stitch Length: 9 mm
Presser Foot Lift: Hand lever 10 mm / Auto 20 mm
Max. Sewing Speed: 3,000 sti/min
Alternating Vertical Movement: 1 → 9 mm dial-adjustable
Hook: Vertical-axis 2.0 fold-capacity
Lubrication: Semi-dry head (tank system)
Application Range (Thread): #30 ~ #5 (B46 ~ B138)
Needle Gauge: Standard
Machine head weight: 57 kg
