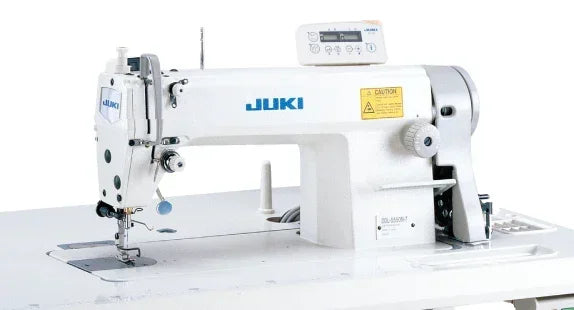

Industrial Lockstitch Machine JUKI DDL-5550NH-7WB Automatic Functions, Heavy-Weight Fabrics

JUKI DDL-5550NH-7WB — 1-Needle Lockstitch Machine with Automatic Thread Trimmer, Wiper, and Automatic Reverse Feed for Heavy-Weight Materials

The DDL-5550NH-7WB is where heavy-weight mechanical capability meets a streamlined production process. Thread take-up, feed mechanism, thread paths, and hook have been refined to respond to material changes accurately and hold stitch quality steady across the run. A 35 mm needle bar stroke and 5 mm maximum stitch length give the machine the structural range that dense fabrics and heavy constructions require at the needle. At each seam end, the automatic functions handle the transition — reverse feed lockoff, thread trim, wiper clear, and foot lift execute in sequence — so the operator reaches for the next piece without breaking stride, and the finished seam is clean, defined, and structurally sound on every piece that leaves the station.

What Sets Juki DDL-5550NH-7WB Apart

• Core Mechanisms Refined for Heavy-Weight Sewing — Stitch Quality That Holds

Thread take-up, feed mechanism, thread paths, and hook have each been developed to keep the machine responsive as material weight, layer count, and construction density change through the stitch cycle.

• 35 mm Needle Bar Stroke — Mechanical Reach for Dense and Rigid Materials


Dense, rigid, and multi-layer constructions place greater demands on the needle's mechanical travel with every pass. The 35 mm stroke is configured to meet those demands — stitch formation stays consistent where a shorter stroke would begin to lose it.

• 5 mm Maximum Stitch Length — Pitch Range Suited to Heavy-Weight Seam Work

At 5 mm maximum, the machine covers the stitch length that topstitching on outerwear, main seams in canvas, and heavy twill construction typically require.

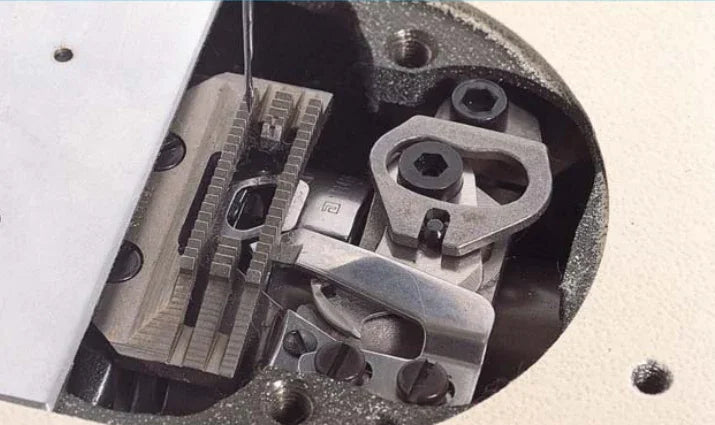

• Automatic Thread Trimmer — Manual Cut Removed from the Cycle

At the seam end, the trimmer activates and the thread is cut cleanly without any input from the operator. No scissors, no pause, no variation between pieces — the cycle closes on its own and the operator is ready for the next piece.

• Thread Wiper — No Loose Thread Carried Into the Following Seam

Once the trim completes, the wiper draws the needle thread end away from the presser foot area before the next piece is placed. The thread does not catch, does not migrate to the fabric face, and does not require the operator to clear it manually. The start of every seam is clean by default.

• Automatic Reverse Feed — Consistent Lockoff on Every Seam

Start and end backtacking executes automatically on every piece — programmed stitch count, consistent reinforcement, no dependency on the operator's timing or technique. Seam lockoff is the same across every station and every shift.

• 13 mm Presser Foot Lift — Handling Room for Heavy Assemblies

A 13 mm knee-controlled clearance gives operators unobstructed access to place and adjust bulky or layered material between seams. On a heavy-weight line where handling resistance accumulates across the shift, that clearance keeps the pace of work steady.

• Automatic Lubrication — Consistent Performance Throughout the Run

Lubrication runs automatically throughout operation, keeping the machine's moving components performing at a consistent level without the operator managing an oil schedule. The automatically lubricated full-rotary hook maintains smooth stitch formation across the full length of the run.

Included Components

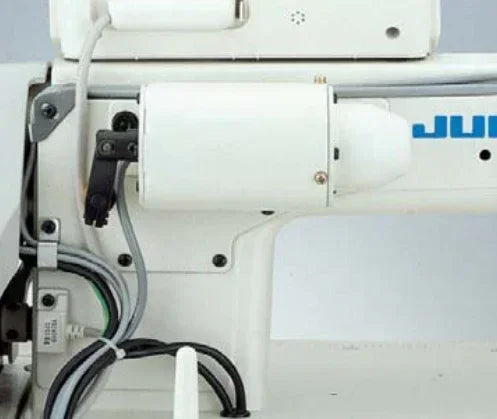

• AK85 Automatic Foot Lifter

Raises the presser foot automatically following each thread trim. The manual or knee-lift step between pieces is gone — the operator's hands stay on the work, and the pace of the handling cycle reflects it.

• SC-920C Control Box

Built to perform reliably under demanding factory conditions — resistant to voltage instability, electrical interference, and mechanical vibration. Standby power draw is reduced by approximately 25% against the SC-910N, an energy saving that accumulates across a full production day without affecting responsiveness when the run starts.

• M92 Servomotor

A compact, energy-saving servomotor that contributes to lower power consumption and higher throughput over a full shift.

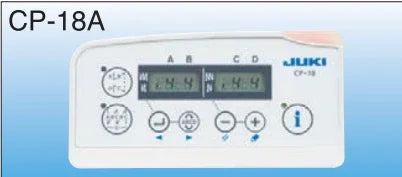

• CP-18A Operation Panel

Equipped with the production support function across three elements:

— output control — target count alongside the live gap between planned and actual output;

— operation measuring — machine availability, pitch time, and average stitch speed;

— bobbin counter — dedicated display mode for bobbin usage tracking.

Reverse-feed stitch count and multi-layer stitching are programmable at the machine level, keeping seam reinforcement locked to spec across every operator and every shift.

How This Machine Improves Your Workflow

• Seam Quality Held Consistent on Heavy Constructions

The refined core mechanisms — thread take-up, feed mechanism, thread paths, and hook — keep stitch formation accurate as material weight, layer count, and construction density shift through the run. Quality is addressed at the source, not at the inspection table.

• Handling Cycle Shortened at Every Seam

Every seam end triggers the same automatic sequence: reverse feed lockoff, thread trim, wiper clear, foot lift. The operator's only job is to move to the next piece — the machine handles the rest. On a high-volume heavy-weight line, that adds up.

• Maintenance Running in the Background

Automatic lubrication operates continuously, keeping moving components at consistent performance levels without any input from the operator — reducing unplanned downtime between scheduled service intervals.

• Output Visibility and Seam Parameter Control at the Machine Level

The CP-18A gives supervisors live visibility into output against target, machine availability, pitch time, and stitch speed. Reverse-feed stitch counts and multi-layer stitching parameters are set at the machine and held there — seam reinforcement stays locked to spec regardless of who is running the station.

Who Benefits Most

✓Outerwear and coat producers — structured wool overcoats, insulated outer shells, woven jackets

✓Workwear and uniform facilities — canvas work trousers, drill coveralls, twill work jackets, service and institutional uniforms

✓Military and tactical apparel manufacturers — ripstop shell garments, tactical outerwear, combat uniform components

✓Casual and streetwear lines — canvas overshirts, chore coats, waxed cotton jackets

✓Equestrian and field sport apparel workshops — competition riding jackets, hunting jackets, field coats, heavy woven shooting vests
