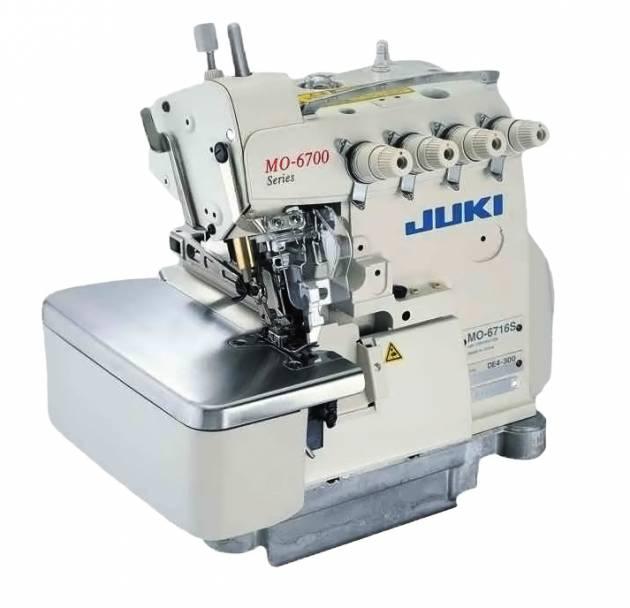

JUKI MO-6716S-FH6-60H Industrial Double-Needle High-Speed Safety Stitch Machine for Heavy Fabrics (6.4 mm Overedging Width)

Stable Safety Stitch for Dense Materials
Set up for jeans-class work with an extra-high upper looper throw, helping the stitch stay consistent when the seam gets thick or hard to feed.

Stronger Edges with 6.4 mm Overedge Width
6.4 mm overedging width with 4.8 mm needle gauge gives wider edge coverage for better fray control and a stronger finished edge.

7,000 Stitches/Minute Maximum Speed
Sewing at up to 7,000 stitches per minute to keep long safety-stitch operations moving without giving up stitch stability.

Up to 4.5 mm Stitch Length
Supports a longer stitch pitch often used on heavier goods, balancing seam strength and a clean, controlled look.

Low-Tension Thread Handling for Cleaner Seams
Needle and looper thread take-up mechanisms support low-tension sewing, helping seams stay cleaner and softer while running at speed.

Micro-Lifter for Smoother Feeding
Lets the presser foot float slightly by fine-tuning pressure/clearance, improving feed through cross seams and uneven layers while reducing slippage and pressure marks.

Quick External Feed Tuning
Differential-feed micro-adjustment plus external feed-dog inclination adjustment makes it faster to dial in feeding for the fabric and keep seam appearance under control.

Stitch type: Safety stitching
Needles / threads: 2-needle / 5-thread
Application: Heavy materials, jeans
Max. sewing speed: 7,000 stitches/min
Max. stitch length: 4.5 mm
Needle gauge: 4.8 mm
Overedging width: 6.4 mm
Feed dog: 3-row
Differential feed ratio: 1:0.9–1:1.7
Needle bar stroke: 24.5 mm
Inclination angle of the needle: 20°
Needle mechanism: Needle bar method with upper/lower bushing
Needle system / size: DC×27, #21
Max. lift of the presser foot: 5 mm
Max. presser foot pressure: 63.7 N (6.5 kg)
Stitch adjusting method: By push-button
Differential-feed adjusting method: By lever (with micro-adjustment)
Weight of the machine head: 28 kg
Lubrication: Automatic
Micro-lifter: Provided as standard
Upper looper: Extra high throw type
