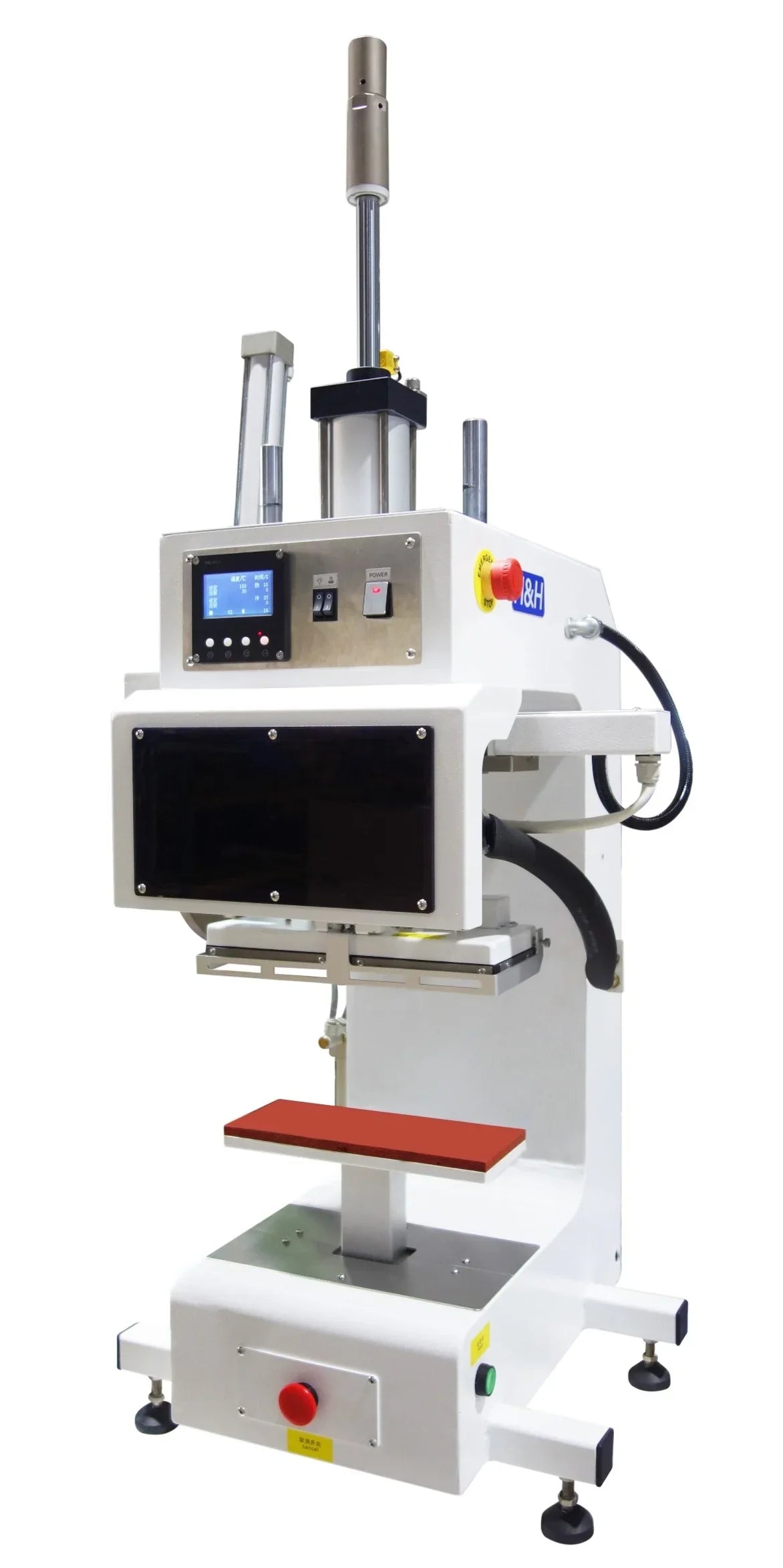

JEUX CS-782 spec A-P2A1-030012 — Pneumatic Flat Heat + Cool Press with 300 × 120 mm Mold Area & 500°F Maximum Temperature
For bonding and pressing steps where precision matters, the JEUX CS-782 spec A-P2A1-030012 runs a controlled heat + cool cycle on a 300 × 120 mm upper/lower mold area, suited to long, narrow zones such as tapes, overlays, and localized reinforcements. Independent temperature control and a wide 1–999 second timing range help keep each cycle consistent, supporting a sharp, uniform finish throughout the run.
What Sets JEUX CS-782 spec A-P2A1-030012 Apart?
• Heat + Cool Pressing with Pneumatic Changeover Control
The press applies heat and pressure for a defined dwell time, then transitions into cooling within the same cycle via pneumatic changeover. Controlling the heat-to-cool phase helps the bonded/pressed area stabilize faster, retain geometry, and deliver more consistent results across the batch.
• 500°F Maximum Temperature with 1–999 Second Timing Range
Maximum temperature is 500°F (260°C), and pressing time is adjustable from 1–999 seconds, supporting a wide range of bonding and pressing cycles.
• 300 × 120 mm Upper and Lower Mold Area for Narrow Press Zones
Upper and lower mold areas are both 300 × 120 mm, providing full-contact pressing across long, narrow areas.
• Two-Hand Start or Selectable Foot Pedal Activation
The press supports both-hands push-button activation for added safety, with selectable foot pedal activation available based on station setup.
• Color Touchscreen Interface with Temperature Trend Display
A user-friendly color touchscreen is used for operation and parameter input, and a temperature trend display provides on-station visibility during setup and production.
• Complete and Incomplete Cycle Counters
Counters track complete and incomplete cycles, supporting straightforward station-level monitoring.
• Self Locked Mode for Controlled Operation
A self locked mode is included to support controlled use of the station.
How It Improves Your Workflow?
• Cleaner, more uniform results on narrow bonding zones
Full-contact pressing on a 300 × 120 mm area, combined with controllable time and temperature, supports consistent finish on narrow-format press steps.
• More repeatable cycles
A broad dwell-time range and pneumatic actuation make it easier to run the same press recipe consistently when air pressure and settings are kept stable.
• More predictable station management
Complete and incomplete cycle counters make it easier to manage compliance with the process, especially when the press is part of a controlled bonding workflow.
• Safer operation with flexible station start methods
Two-hand start supports safer actuation, while selectable foot pedal activation supports a station layout that prioritizes operator flow.
Who Benefits Most from the JEUX CS-782 spec A-P2A1-030012?
Outerwear, outdoor gear, and performance apparel facilities – seam tape bonding, reinforcement tape runs, panel overlays.
Workwear, uniform, and protective apparel facilities – stress-point reinforcements, patch/label bonding, component pressing.
Bag, backpack, and technical soft-goods shops – anchor reinforcements, panel and strap-end overlays.
