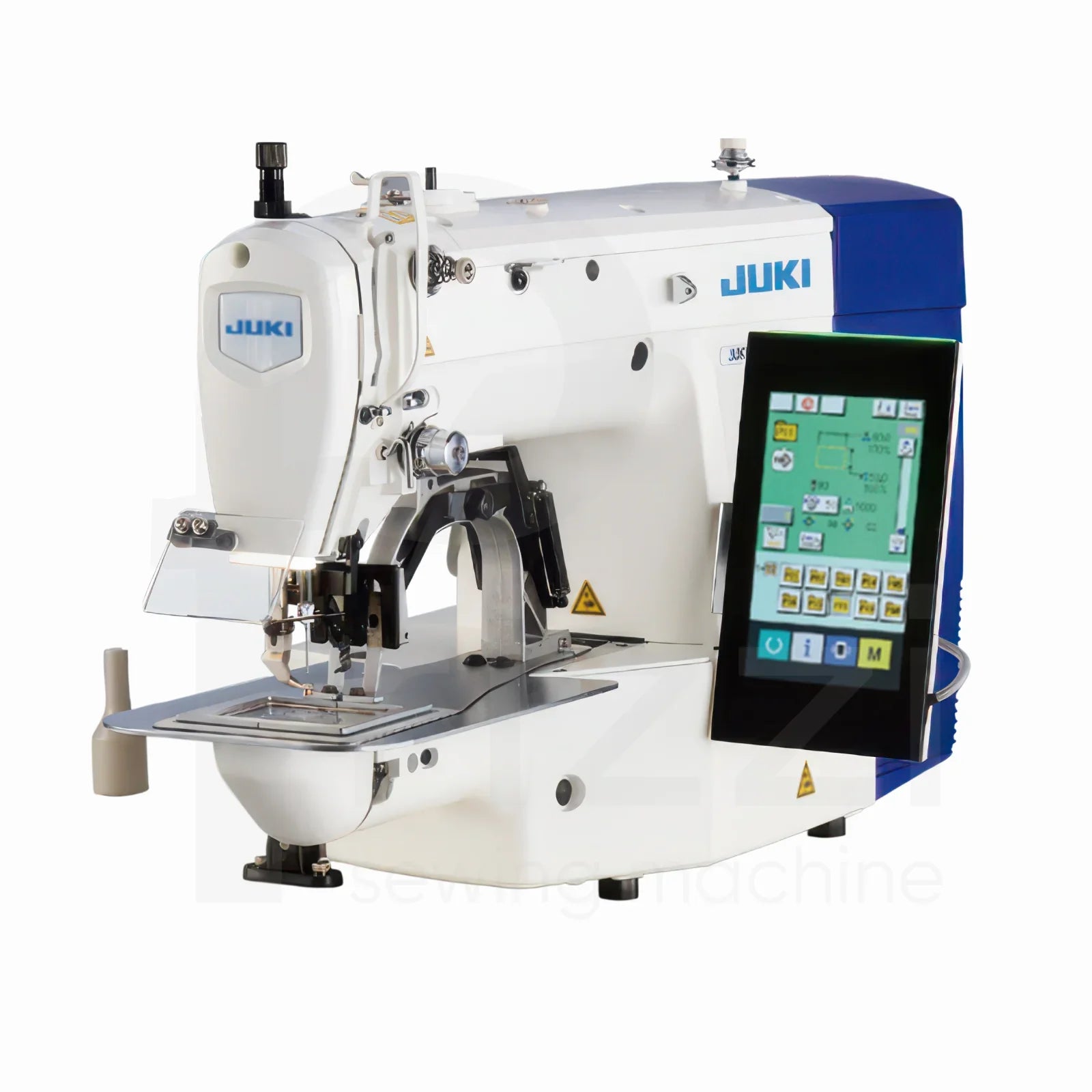

JUKI LK-1905C Computer-Controlled High-Speed Industrial Pattern Sewing Machine (60×50 mm)

Get labels, Velcro, and corner reinforcements done faster and cleaner with a dry-head (no oil stains) and active electronic tension for consistent stitches. Optional IP-510 touch programming lets you size patterns 20–200% and swap jobs in minutes—perfect for high-mix apparel lines.

Learn more...
Regular price $8,757.00
Sale price Our Price: $8,757.00 Regular price Market Price: $11,625.00
Unit price

Build your perfect PRIZZI custom sewing table with a lifetime warranty for all sewing machine brands.

Head only $8,757.00
Workstation with accessories (chose below).
Price Includes 10% OFF Halloween Sale.
Prices will Increase in October due to new U.S. tariffs.


Total Price:

Pay No Sales Tax Except in California

  • Order today for the fastest delivery:Oct 29 - Nov 02

  • Shipping available to all U.S. states

100% Guaranteed Safe & Secure Checkout

Compare Ask a question

Ask a Question

* Required fields

Size guide
JUKI LK-1905C Computer-Controlled High-Speed Industrial Pattern Sewing Machine (60×50 mm)

JUKI LK-1905C Computer-Controlled High-Speed Industrial Pattern Sewing Machine (60×50 mm)

Regular price $8,757.00
Sale price Our Price: $8,757.00 Regular price Market Price: $11,625.00
Unit price

JUKI LK-1905C

How It Works

ABOUT THIS PRODUCT
ABOUT PRIZZI TABLES
MACHINE FEATURES
SPECIFICATIONS
MANUALS & WARRANTY
FAQS

JUKI LK-1905C —  Compact 60×50 mm Pattern Sewer, Clean & Repeatable

The LK-1905C is JUKI’s compact pattern sewer for medium-weight materials, delivering fast, repeatable bar and custom patterns in a 60 mm (W) × 50 mm (L) area. With a dry-head design (no oil at the needle bar/take-up), Active electronic thread tension, and an optional IP-510 touch panel for on-screen programming, it produces clean, consistent results while shortening setup and cycle time.


What sets LK-1905C apart

  • Expanded 60×50 mm sewing field – perfect for bartacks, label/Velcro attachment, pocket corners, boxer elastic joints, sleeve boxes, etc.

  • Active Tension – electronic needle-thread tension you can set and store per material/pattern for stable quality across shifts.

  • Dry-head with minute hook lubrication – prevents oil stains on garments.

  • IP-510 programmable panel (selectable) – high-resolution touch UI; stores patterns, shows needle-entry points, error guidance; USB port standard.

  • Big internal memory – up to 999 patterns / 50,000,000 stitches total (max 50,000 stitches per pattern). USB import as standard.

  • Intermediate presser (selectable) – suppresses material floating at corners and direction changes for crisp box shapes.


How it improves your workflow

  • Higher throughput: up to 2,700 sti/min with fast thread-trim/transition sequences to shorten total cycle time.

  • Rapid changeovers: enlarge/reduce patterns 20–200% (1% steps) and adjust via stitch length—no re-digitizing for size changes.

  • Accurate positioning: (optional) LED marking light helps align the sew field quickly.

  • Less rework, cleaner results: dry-head + active tension + intermediate presser keep stitches uniform and stain-free.


Who benefits most

Sportswear & underwear – boxer elastic joints, label/Velcro attachments
Shirts, blouses, knitwear – sleeve boxes, pocket corners, reinforcement boxes
Uniforms & workwear – consistent label sewing at scale
 Light bags/small goods – patches, tabs, straps within 60×50 mm field



Build Your Perfect Workstation with PRIZZI

Any Sewing Machine, Any Specification
We specialize in crafting custom workstations tailored to your exact specifications. No matter the brand or model of your sewing machine, we can create a workstation that fits it perfectly.

Quality Seal of Approval
After passing our stringent inspections, every workstation receives a QC sticker, symbolizing our commitment to excellence.

Lifetime Warranty
All of our custom sewing tables are backed by a lifetime warranty. We stand by the quality and durability of our tables, ensuring they meet your exact needs for the long haul.

Specifications for Over 4,000 Machines
With an extensive database of machine specs across all brands, we're ready to build your custom workstation without delay.

1-2 Day Production Time
Our efficient processes enable us to craft and deliver your custom workstation within just 1-2 days.

Expanded 60×50 mm sewing field
Perfect for bartacks, label/Velcro attachment, pocket corners, boxer elastic joints, sleeve boxes, etc.

Active Tension
Electronic needle-thread tension you can set and store per material/pattern for stable quality across shifts.

Dry-head with minute hook lubrication
Prevents oil stains on garments.

IP-510 programmable panel (selectable)
High-resolution touch UI; stores patterns, shows needle-entry points, error guidance; USB port standard.

Big internal memory
Up to 999 patterns / 50,000,000 stitches total (max 50,000 stitches per pattern). USB import as standard.

Intermediate presser (selectable)
Suppresses material floating at corners and direction changes for crisp box shapes.

Higher throughput
Up to 2,700 sti/min with fast thread-trim/transition sequences to shorten total cycle time.

Rapid changeovers
Enlarge/reduce patterns 20–200% (1% steps) and adjust via stitch length—no re-digitizing for size changes.

Accurate positioning
(optional) LED marking light helps align the sew field quickly.

Application: Medium-weight materials
Max sewing speed: 2,700 sti/min
Sewing area: 60 mm (W) × 50 mm (L)
Stitch length: 0.1–10.0 mm (0.1-mm steps)
Needle bar stroke: 41.2 mm
Work-clamp lift: 14 mm standard (up to 17 mm using reverse-rotation needle-up function)
Auto-lifter: Stepping-motor type (standard)
Thread tension: Active (electronic)
Needle: DP×5 (#14) (at delivery)
Hook: Standard
Standard patterns: 100
Patterns in memory: Up to 999 / 50,000,000 stitches total (max 50,000 stitches per pattern)
Enlarge/Reduce: 20–200% in 1% steps (with stitch-length compensation)
Material drawing amount: Max 3 mm
Bobbin thread counter: Standard (up/down method)
Marking light: LED alignment light (selectable)
Lubrication: Dry-head; hook minute-quantity lubrication (JUKI New Defrix Oil No.2)
Motor/drive: 550 W direct-drive AC servo; control box on head
Power: Single-phase 200–240 V / 230 VA or 3-phase 200–240 V / 230 VA
Weight (head with control box, motor, panel): ≈58.3 kg
