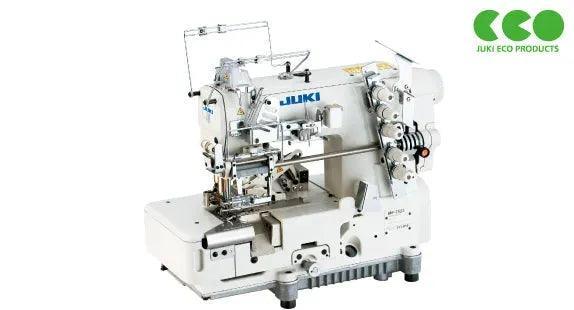

Juki MF-7523-E11B64/MD11/TC16B, Flat-bed, Top & Bottom Coverstitch Machine

FAST SEWING PERFORMANCE
The Juki MF-7500/7500D E-11 delivers fast and precise sewing for elastic lace attachment, with a right-hand fabric trimmer ensuring smooth and accurate cuts for multi-layered materials.

OIL-FREE OPERATION
Juki's Dry-Head Technology prevents oil stains, protecting sewing products and reducing the need for stain-removal or re-sewing, resulting in higher-quality finished products.

PRECISE MATERIAL CONTROL
The differential-feed micro-adjustment mechanism allows fine-tuning of the feed ratio to perfectly suit different materials, ensuring consistent results even with elastic or delicate fabrics.

ADAPTABLE FEED MECHANISM
The adjustable feed locus and longitudinal feed position mechanism enhance responsiveness to a wide range of materials, minimizing puckering and uneven feeding, especially with elastic materials.

USER-FRIENDLY OPERATION
With an easy-to-remove right-hand fabric trimmer and the ability to switch to collarette-attaching processes, the MF-7500/7500D E-11 provides flexibility and ease of use for various garment production needs.

Machine head: MF-7500 series (2-needle/3-needle/4-needle top and bottom coverstitch), MF-7500D series (dry-head)
Max. sewing speed: 5,000 stitches per minute (sti/min)
Lift of the presser foot: 5mm (with top and bottom coverstitch), 8mm (with bottom coverstitch)
Needle: UY128GAS (#10S) #9S~#12S
Stitch pitch adjustment: By dial
Differential feed adjustment: By micro-adjustment mechanism
Lubrication: Automatic (MF-7500), Automatic (frame: no lubrication, MF-7500D)
Lubricating oil: JUKI Machine Oil 18 (equivalent to ISO VG18)
Feed dog inclination adjustment: Provided as standard
Micro-lifter: Provided as standard
Needle bar stroke converting function: 31mm (standard) ~ 33mm (for heavy-weight material)
Silicon oil tank for needle tip and needle thread: Provided as standard
Cartridge oil filter: Provided as standard
Power requirement: Single-phase 100~120V / 200~240V, 3-phase 200~240V (with automatic thread trimmer)
Power consumption: 500VA (with automatic thread trimmer)
Weight of the machine head: 46kg (without device)
