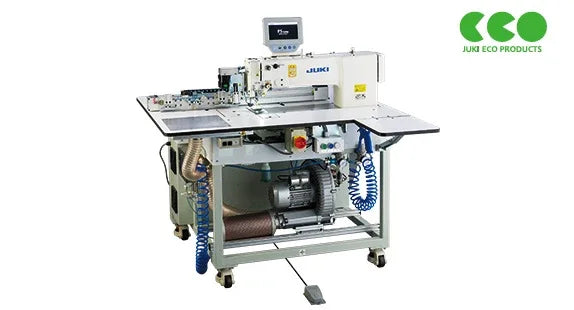

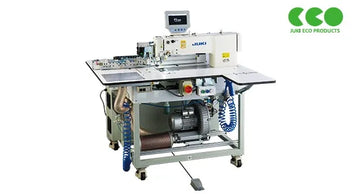

Juki PS-800SB-3830ZKZV Programmable Pattern Sewing Machine for Light-Weight Materials Sewing Area 380×300 mm Fabric Vacuum Function

FABRIC VACUUM FUNCTION
The JUKI PS-800SB-3830ZKZV is equipped with a powerful fabric vacuum system located beneath the worktable. It gently secures lightweight and soft materials during sewing, ensuring smooth feeding, stable fabric control, and precise pattern alignment — especially effective when working with delicate woven or knit fabrics that tend to shift or wrinkle.

AUTOMATIC PATTERN RECOGNITION
Using RFID and Barcode reader technology, the machine automatically identifies and loads the correct sewing pattern. This enables instant program selection and seamless transitions between jobs, improving efficiency and reducing operator input in high-variety production environments.

ADVANCED OPERATION PANEL
The intuitive operation panel supports a wide range of sewing data formats — DXF, AI, PLT, and DST — for immediate compatibility with existing digital pattern libraries. With the ability to store up to 999 patterns and bundled editing software, it offers complete flexibility for design and production workflows.

PROGRAMMABLE INTERMEDIATE PRESSER HEIGHT
The programmable presser mechanism allows stepless adjustment of the presser height during sewing. This ensures uniform material holding and smooth sewing through multi-layered sections, effectively preventing skipped stitches, puckering, or thread breakage — ideal for thin or layered light materials.

CLEAN SEMI-DRY HEAD SYSTEM
The semi-dry lubrication system keeps the needle bar area oil-free, eliminating the risk of oil stains on fabrics. This ensures clean, flawless seams and reduces maintenance while extending machine lifespan.

DOUBLE-CAPACITY ROTARY HOOK
Equipped with a full-rotary double-capacity hook, the PS-800SB-3830ZKZV allows longer continuous sewing cycles with fewer bobbin changes and maintains consistent stitch formation at high speeds.

ERGONOMIC POWER SWITCH DESIGN
The up-down adjustable power switch allows the operator to position it for comfort and convenience, minimizing fatigue during long production runs.

Sewing Area: 380 × 300 mm
Max. Sewing Speed: 3,000 sti/min
Lubrication: Semi-dry (needle-bar dry)
Fabric Vacuum Function: Standard
Cutter Equipment: Rotary knife (for light material)
Hook: Full-rotary double-capacity hook
Lift / Stroke of Intermediate Presser: 20 mm lift / 4 mm stroke
Needle (at delivery): DB × 1 #8 (range #7–#14) or DP × 17 #21 (range #8–#23)
JaNets Device: Retrofittable
Template Recogniser: RFID and barcode modes
Dimensions: 1,200 mm (W) × 1,020 mm (L) × 1,440 mm (H)

DOWNLOADS:

Juki PS-800SB-3820 Instruction
